Model: BS-2406-012
Concealed Hinge
Inquiry
Download
Download 3D Step
BACK TO LIST

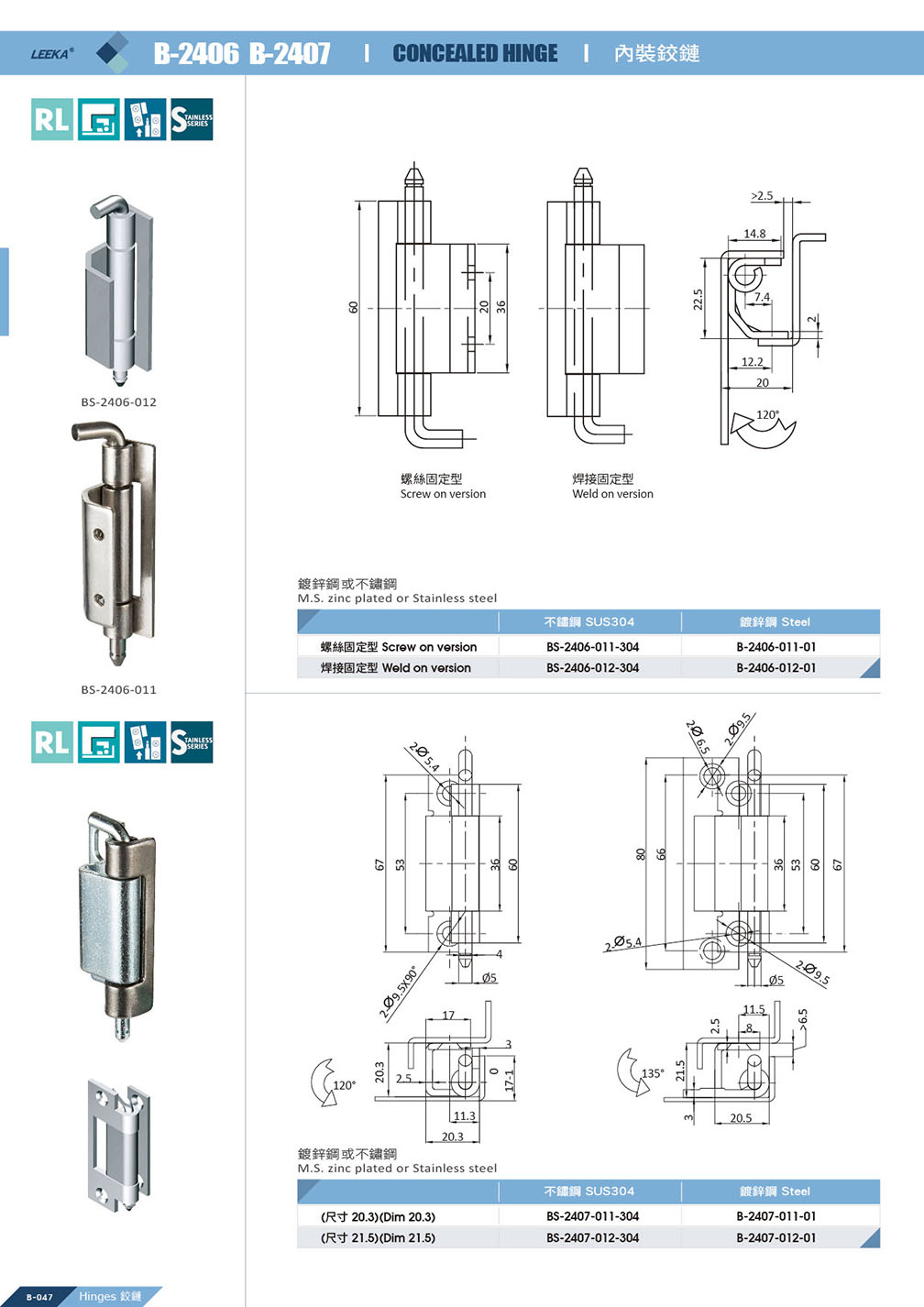

Concealed Internal Hinge

This concealed hinge is installed inside the enclosure or cabinet door. The hinge is not visible from the outside, providing a clean and aesthetically pleasing appearance.

Product Advantages

  • Fully concealed design – installed inside the enclosure
  • Opening angle: 120°
  • Quick-release design: the pin can be removed via an E-clip, allowing easy door panel removal

Material Options

  • Electro-galvanized steel or stainless steel SUS304

Mounting Types

Screw-mounted type

  • Stainless steel 304 model: BS-2406-011-304
  • Electro-galvanized steel model: B-2406-011-01

Weld-mounted type

  • Stainless steel 304 model: BS-2406-012-304
  • Electro-galvanized steel model: B-2406-012-01

Key Benefits

  • Quick disassembly: No need to remove the entire hinge—simply remove the E-clip and pull out the pin to separate the door panel from the enclosure
  • Easy maintenance: Convenient for door replacement and maintenance
  • Wide opening angle: 120° opening allows easy access for internal operations

Universal left/right installation—adjust orientation during installation as needed.

Applications

  • Electrical control enclosures
  • Machinery equipment
  • Sheet metal fabrication
  • Industrial equipment doors
  • Instrument enclosures
  • Automation equipment
