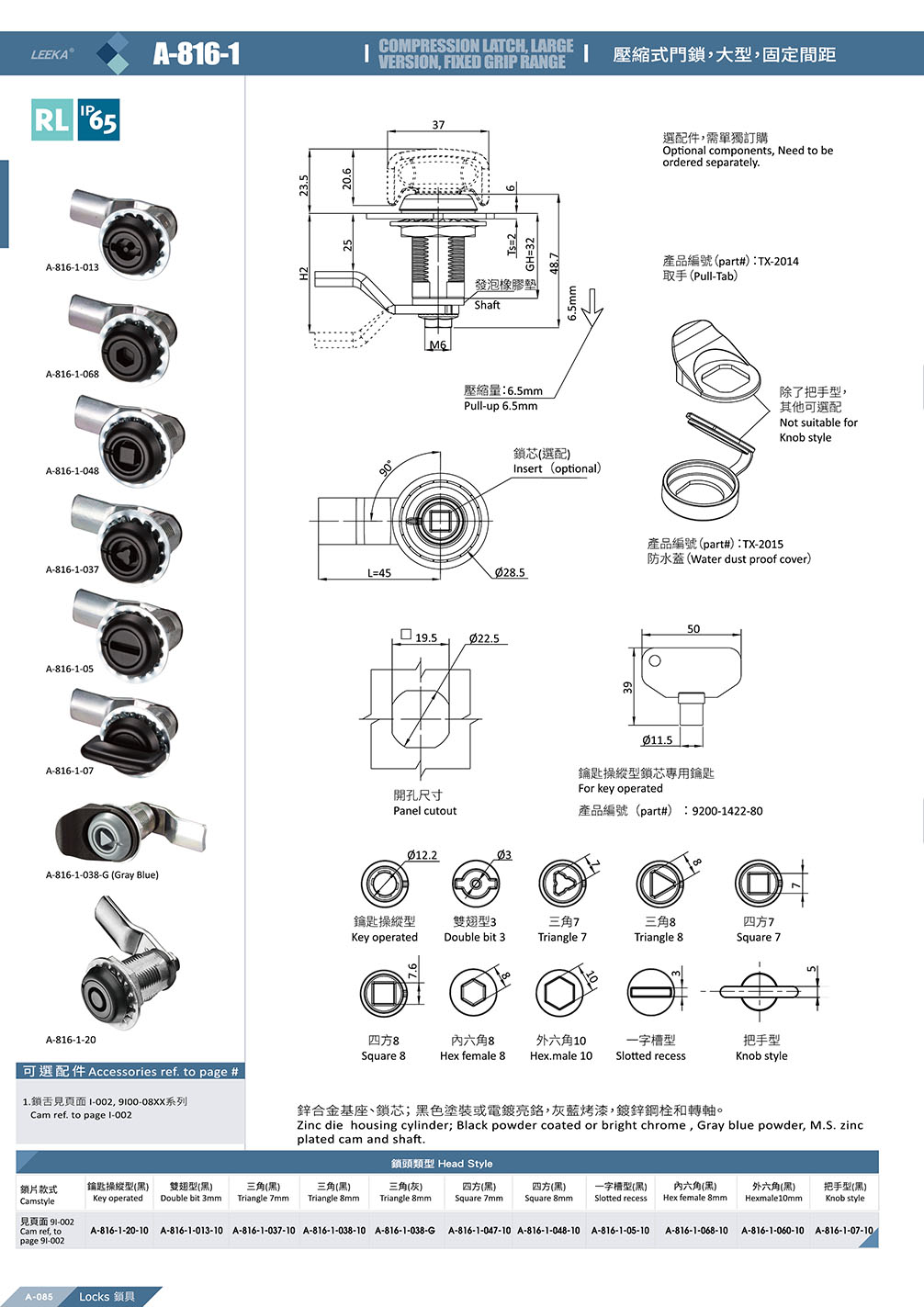

Model: A-816-1-20-10
Compression Latch, Large Version, Fixed Grip Range
Compression Latch, Large Version, Fixed Grip Range
Download
BACK TO LISTCompression Latch
Large size, fixed spacing.
Designed with a compression structure, this latch provides significant advantages by applying compressive force when the door is closed, ensuring a tight fit between the door panel and frame. This design greatly enhances vibration resistance, effectively preventing loosening, and can be paired with waterproof sealing strips to create a reliable barrier against water and dust, suitable for various harsh environments.
Features
- Secure closure: The compression structure provides firm locking force when the door is closed. The latch tongue moves forward to tighten, preventing loosening due to vibration and ensuring close contact between the door panel and sealing strip for excellent shock resistance.
- Material: Main body – Zinc alloy, available in black coating and bright chrome plating.
- IP65 protection rating: Excellent dustproof and waterproof performance.
Lock Core Types
- Double-wing lock core
- Triangular lock core
- Square lock core
- Flat-blade lock core
- Inner hex lock core
- Outer hex lock core
- Handle type
- Key-operated type
Applications
- Outdoor cabinets
- Electrical control boxes
- Waterproof equipment enclosures
- Industrial equipment doors
- Various waterproof and sealed applications
Accessories
