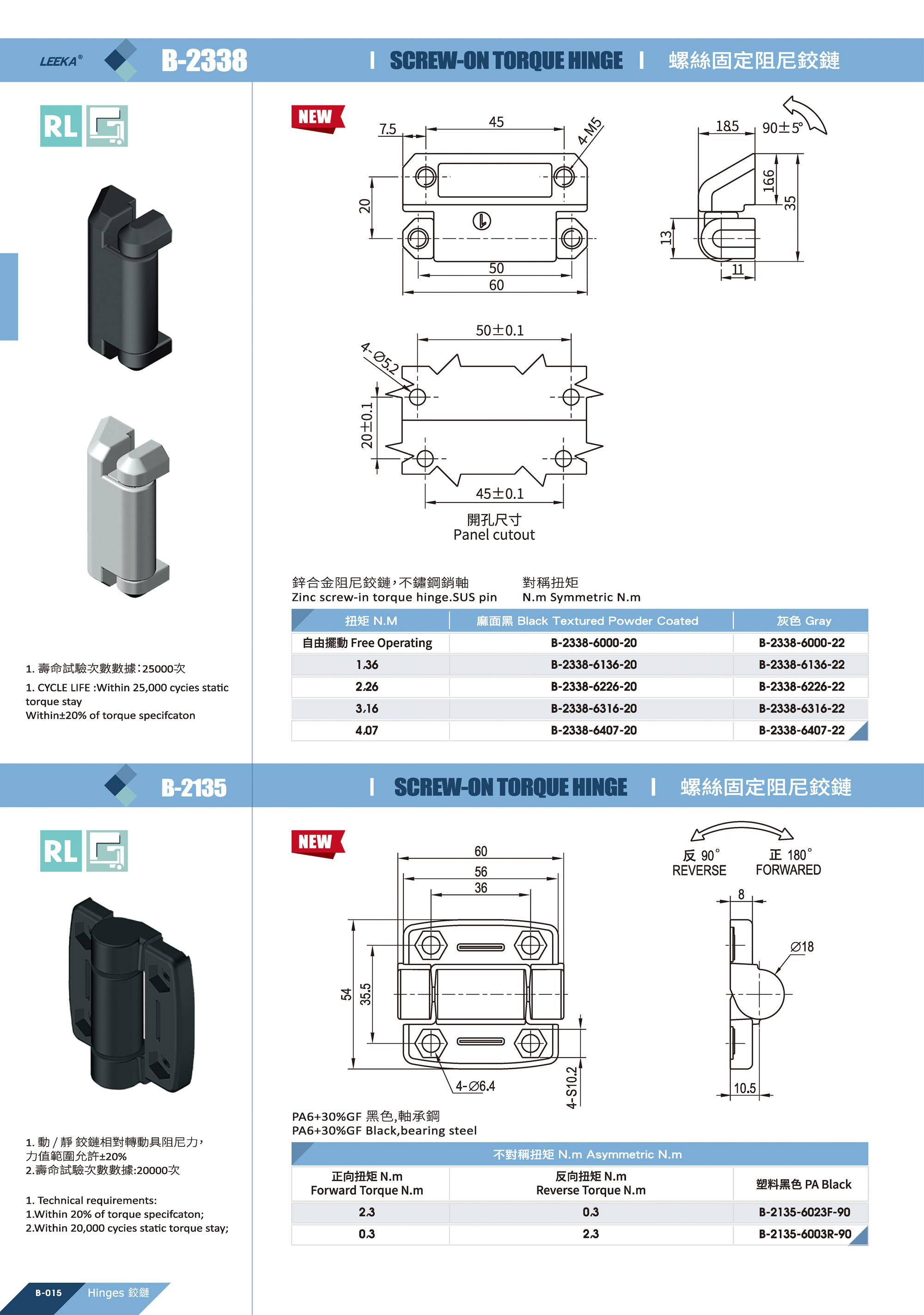

BACK TO LISTScrew-On Torque Hinge
Users can select the torque based on the door panel weight and desired operating feel. The hinge provides stable support with a fixed torque, allowing the door panel to stay at any angle and hold positions such as fully closed, partially open, or fully open.
Product Features
- Material: PA6+30%GF, Black
- Pin: Carbon Steel / Stainless Steel SUS304
- Torque Type: Asymmetrical Torque
Cycle Life & Durability
- Test Cycles: 20,000 cycles
- Test Frequency: 15 cycles per minute
- Torque Degradation After Test: Not exceeding ±20% of original torque
Applications
- Semiconductor Equipment
- Industrial Equipment Door Panels
- Automation Equipment
