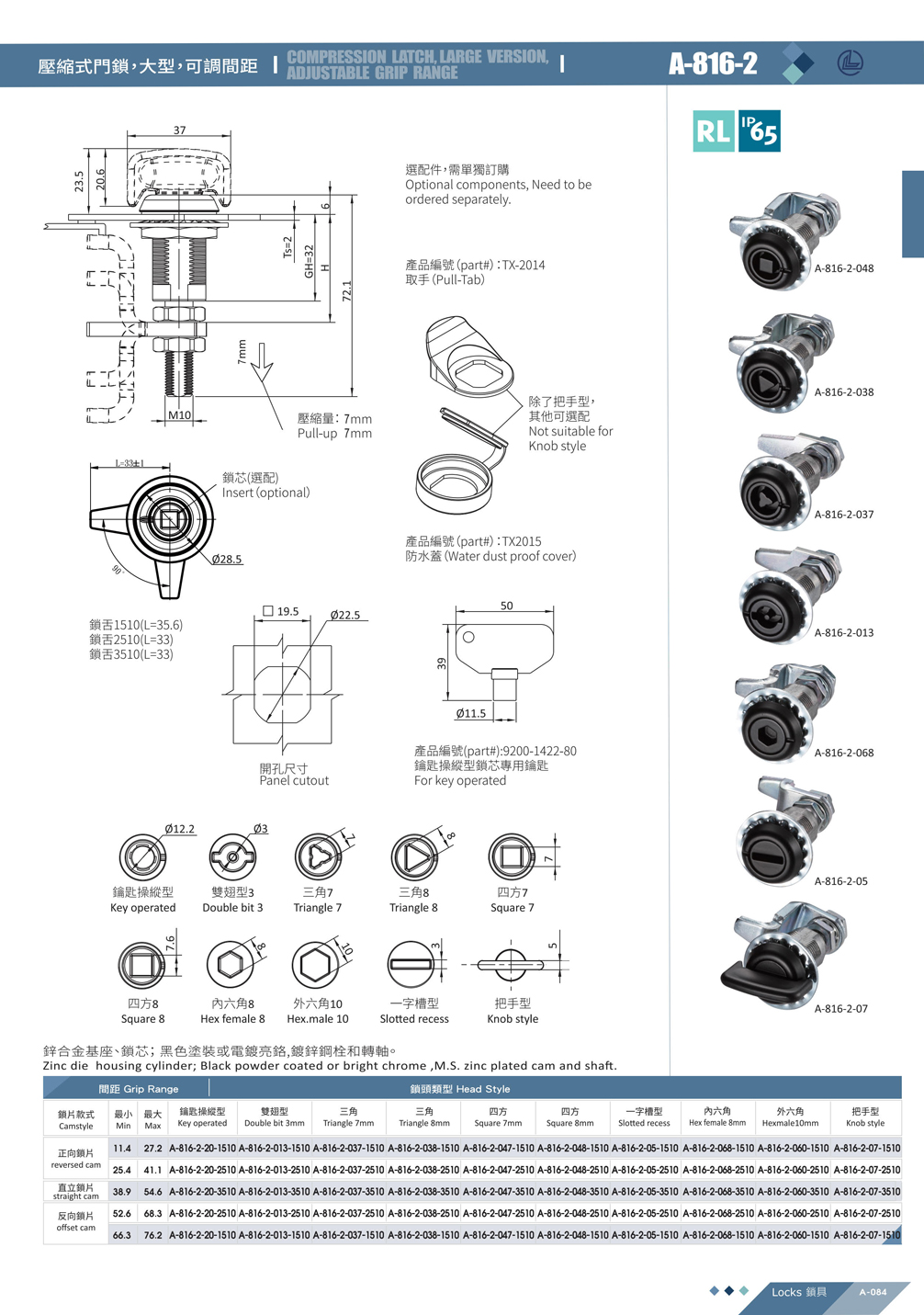

Model: A-816-2-05
Compression Latch, Large Version, Adjustable Grip Range
Compression Latch, Large Version, Adjustable Grip Range
Download
BACK TO LISTCompression Latch
Large size, adjustable grip range.
Designed with a compression mechanism that provides significant advantages by applying compressive force when the door is closed, ensuring a tight fit between the panel and the frame. This design greatly enhances vibration resistance, prevents loosening, and, when used with waterproof sealing gaskets, forms a reliable barrier against water and dust—ideal for harsh environments.
Product Features
- Secure Closure: The compression mechanism provides firm locking force when the door is closed. The latch tongue moves forward to press tightly, preventing loosening caused by vibration and ensuring excellent sealing and anti-vibration performance.
- Adjustable Grip Range: Compatible with doors and panels of varying thicknesses. Adjusting the nut changes the grip range, reducing installation constraints.
- Material: Main body – Zinc alloy. Available in black coating or bright chrome plating.
- IP65 Protection Rating: Provides excellent dustproof and waterproof performance.
Lock Core Types
- Double wing type
- Triangle type
- Square type
- Slotted type
- Internal hex type
- External hex type
- Handle type
- Key-operated type
Applications
- Outdoor cabinets
- Electrical control boxes
- Waterproof enclosures
- Industrial equipment doors
- Various waterproof and sealed applications
Accessories
