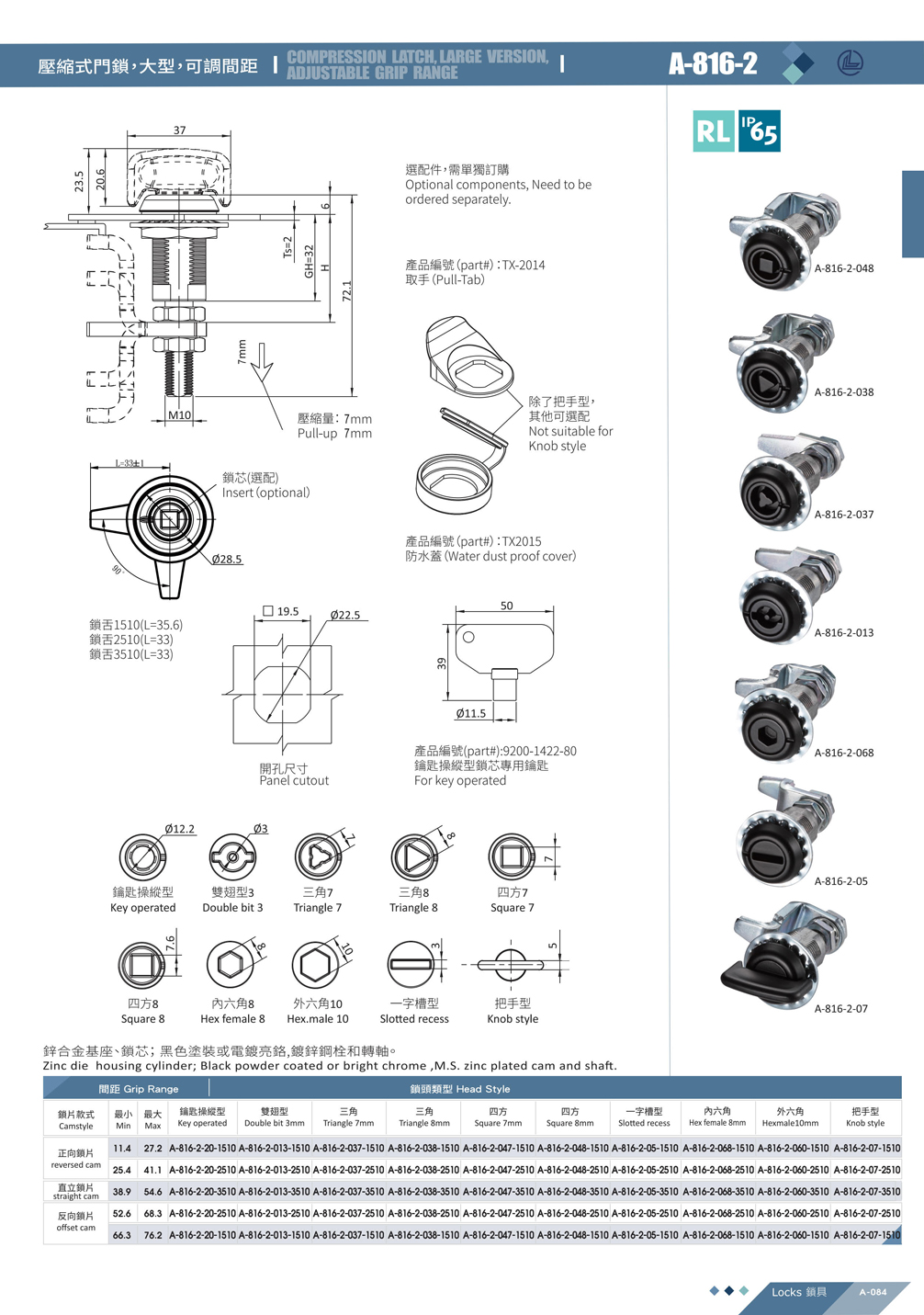

Model: A-816-2-048
Compression Latch, Large Version, Adjustable Grip Range
Compression Latch, Large Version, Adjustable Grip Range
Download
Download 3D Step
BACK TO LISTCompression Latch
Large size, adjustable grip range.
Designed with a compression mechanism that provides a strong closing force, ensuring the door panel fits tightly against the frame. This structure significantly enhances vibration resistance, prevents loosening, and—when paired with sealing gaskets—forms a reliable barrier against water and dust, making it ideal for harsh environments.
Features
- Secure closure: The compression design provides firm locking force when closed. The cam pushes forward as the door is latched, preventing loosening due to vibration and ensuring tight contact between the door panel and seal for excellent shock resistance.
- Adjustable grip range: Compatible with doors and panels of various thicknesses. Adjust the nut to change the spacing, reducing installation constraints.
- Material: Main body – Zinc alloy, available in black coated or bright chrome-plated finish.
- IP65 Protection: Excellent dustproof and waterproof performance.
Cam & Key Types
- Double-wing cam
- Triangle cam
- Square cam
- Slotted cam
- Inner hex cam
- Outer hex cam
- Handle type
- Key-operated type
Applications
- Outdoor enclosures
- Electrical control cabinets
- Waterproof equipment housings
- Industrial equipment doors
- Any waterproof or sealed applications
