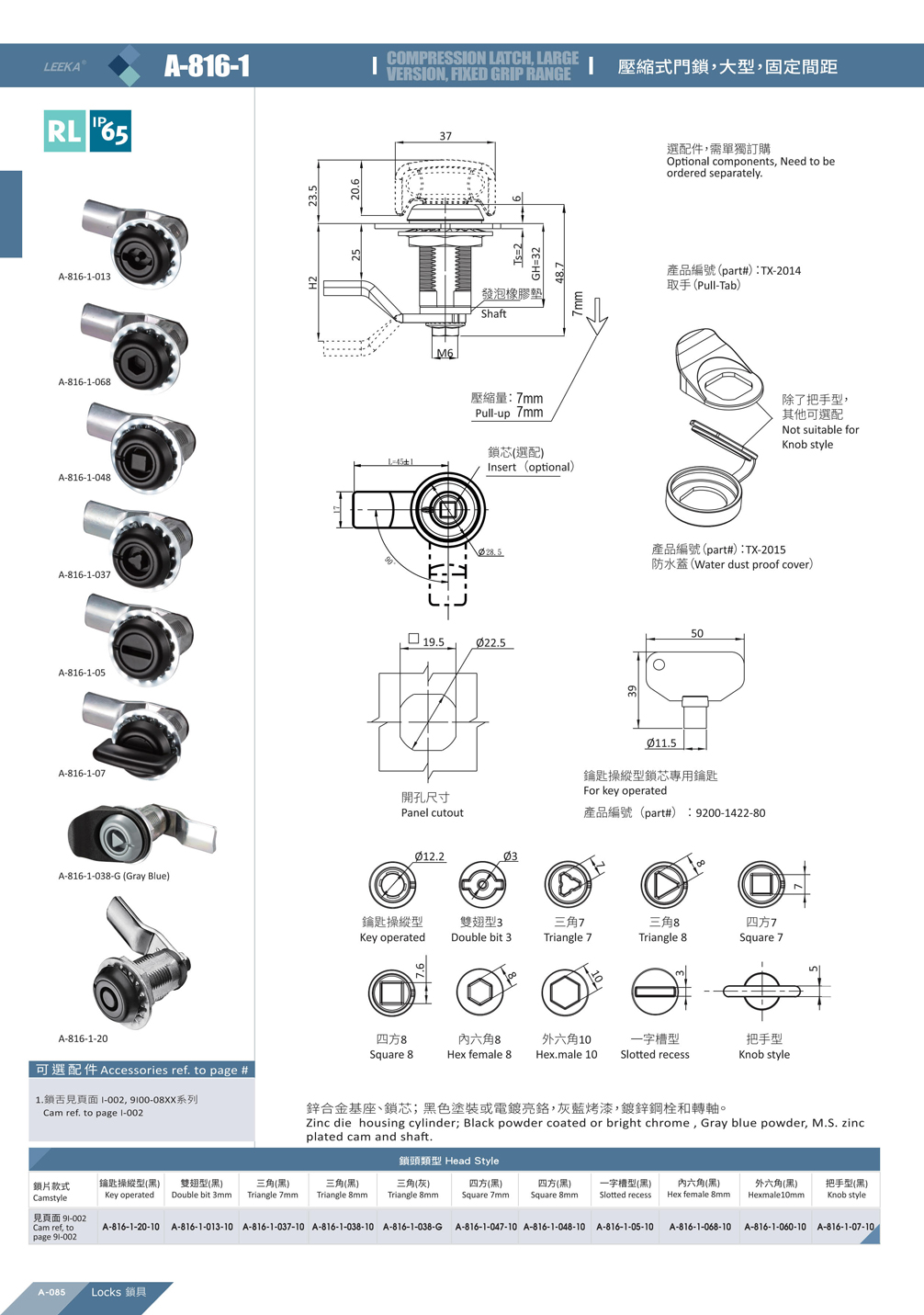

Model: A-816-1-07
Compression Latch, Large Version, Fixed Grip Range
Compression Latch, Large Version, Fixed Grip Range
Download
Download 3D Step
BACK TO LISTCompression Latch
Large type, fixed distance.
Designed with a compression mechanism, this latch provides significant advantages by applying compression force when the door is closed, ensuring a tight fit between panels. This design greatly enhances vibration resistance, effectively prevents loosening, and—when paired with waterproof sealing gaskets—forms a reliable barrier against water and dust, making it suitable for various harsh environments.
Features
- Secure Closure: The compression structure provides firm locking force when the door is closed. The latch tongue pushes forward upon locking, preventing loosening caused by vibration, keeping the panel tightly sealed with the gasket, and delivering excellent vibration resistance.
- Material: Main body – Zinc alloy, available in black coating or bright chrome plating.
- IP65 Protection Rating: Excellent dustproof and waterproof performance.
Lock Core Types
- Double-wing lock core
- Triangle lock core
- Square lock core
- Slotted lock core
- Inner hexagon lock core
- Outer hexagon lock core
- Handle type
- Key-operated type
Applications
- Outdoor cabinets
- Electrical control boxes
- Waterproof equipment enclosures
- Industrial equipment doors
- Various waterproof and sealed applications
Accessories
