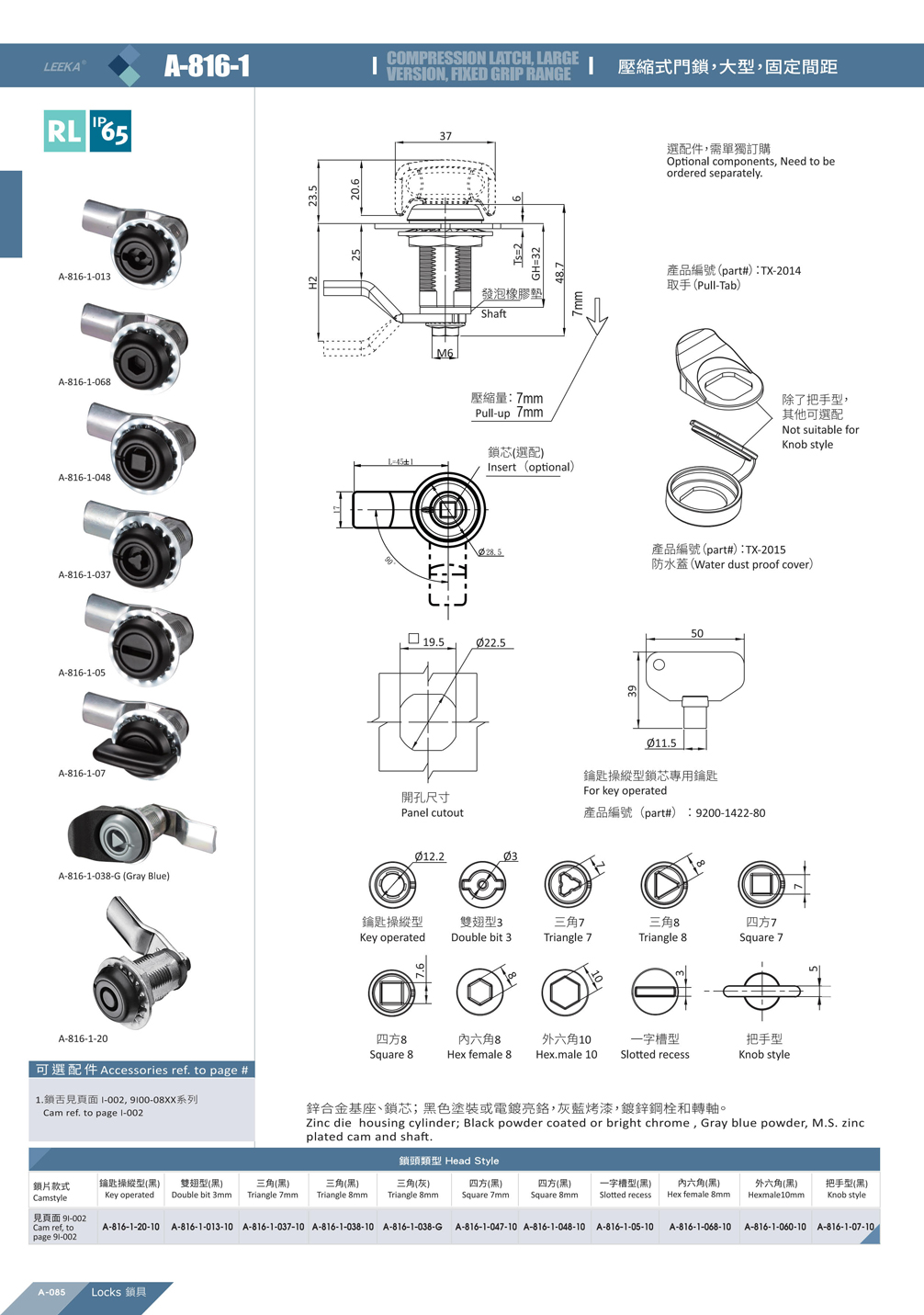

Model: A-816-1-048
Compression Latch, Large Version, Fixed Grip Range
Compression Latch, Large Version, Fixed Grip Range
Download
Download 3D Step
BACK TO LISTCompression Latch
Large size, fixed spacing.
Designed with a compression structure that offers significant advantages. When the door is closed, it applies compression force to ensure a tight fit between the door and frame. This design greatly enhances vibration resistance, effectively prevents loosening, and can be paired with waterproof sealing gaskets to create a reliable barrier against water and dust — ideal for various harsh environments.
Product Features
- Secure Closure: The compression structure provides firm locking force when the door is closed. The latch tongue moves forward to tighten and prevent loosening due to vibration, ensuring a tight seal between the door panel and gasket for excellent shock resistance.
- Material: Main body made of zinc alloy, available in black coating or bright chrome plating.
- IP65 Protection Rating: Excellent dustproof and waterproof performance.
Lock Type Options
- Double-wing lock core
- Triangle lock core
- Square lock core
- Flat slot lock core
- Inner hexagon lock core
- Outer hexagon lock core
- Handle type
- Key-operated type
Applications
- Outdoor cabinets
- Electrical control boxes
- Waterproof equipment enclosures
- Industrial equipment doors
- Various waterproof and sealed applications
Accessories
