BACK TO LISTSnap-In Slide Latch

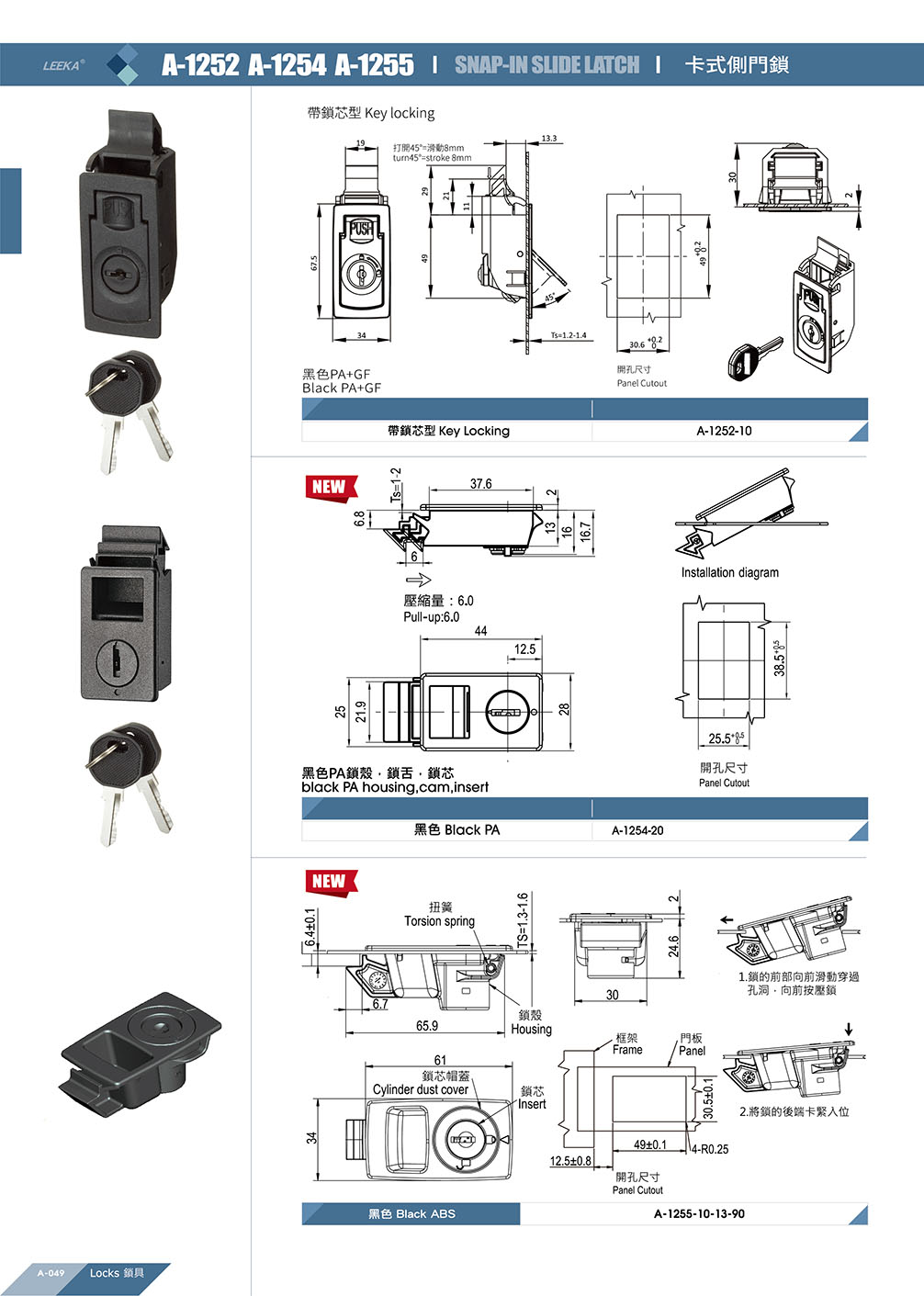

This snap-in slide latch features a snap-on installation design. It can be quickly mounted through a single square cutout with no additional screws required. Simply slide the front end of the latch body through the opening and press the rear end to lock it securely in place, greatly simplifying the assembly process.
Product Features
- Easy Installation: One square hole installation. Insert the front end, press the back end to snap into place.
- Simple Operation: Press the button to retract the latch tongue by 6 mm.
- With Lock Cylinder: Can be locked with a key for enhanced security.
- Durable Material: PA6+GF30 black nylon housing, lightweight and impact resistant.
- Suitable Panel Thickness: 1–2 mm
Applications
- Flush-mounted side doors or panels
- Equipment cabinets
- Electrical boxes
- Machine doors
