Model: A-1431-100-90
Push to Close Latch
Inquiry
Download
Download 3D Step
BACK TO LIST

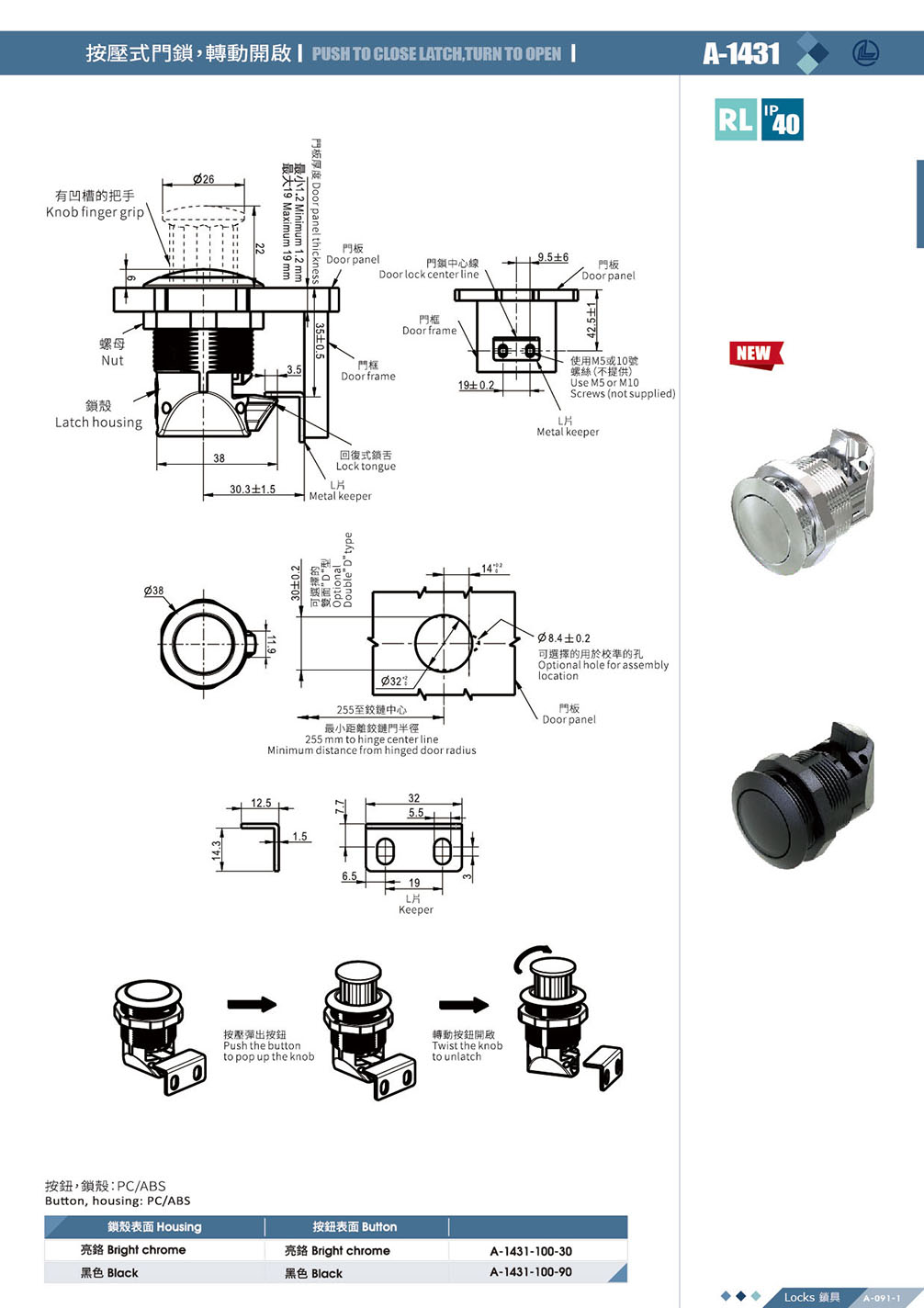

Push-Type Door Lock (Rotary Opening Design)

Product Features

  • Two-Stage Design
    When not in use: the button remains flush with the panel for a clean appearance and to prevent accidental bumps.
    When in use: pressing the button makes it pop out, allowing easy finger grip and sufficient leverage to rotate and operate the latch to open the door.
  • Operation Method
    Press the button → button pops out → rotate the button → latch retracts → door opens
    Release the button → latch automatically returns to position under spring force → door locks
  • Material & Appearance
    Button made of PC, lock body made of ABS, available in bright chrome or black coating finishes.
