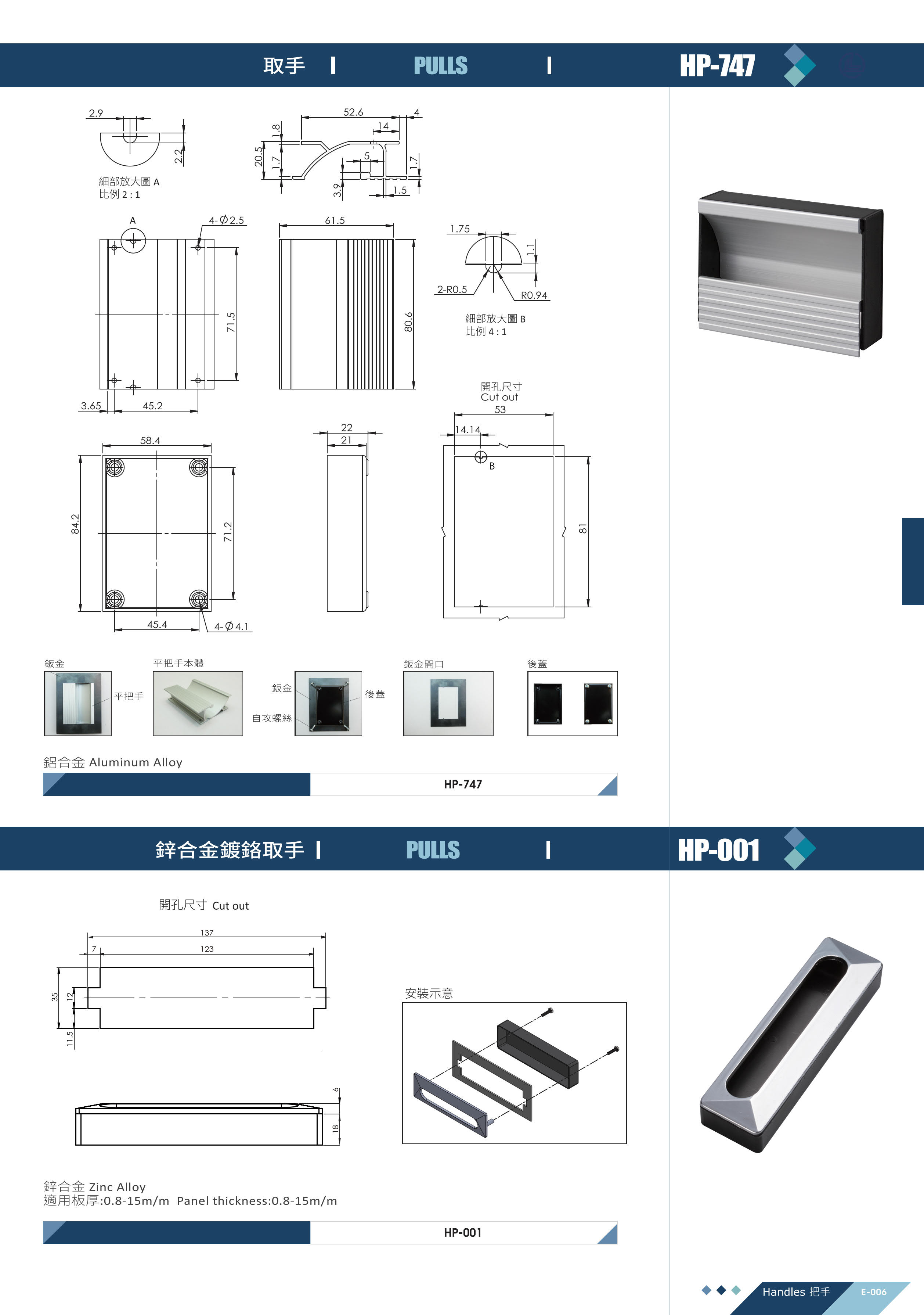

HP-747 Pulls

Specifications

• Material: Aluminum Alloy Body + Black Rear Cover
• Installation: Flush Mount Installation with Four Self-tapping Screws on the Rear Side

Features

• Panel Cutout: Main cutout size: 53×81 mm. Positioning notches should be machined on the upper and lower edges of the cutout (14.14 mm from the left side) according to the drawing. These notches align with the locating tabs on the rear of the handle to ensure accurate installation and prevent movement during long-term use.
• Installation: Insert the aluminum alloy flush handle into the panel cutout from the front side of the door.
• Fastening: Attach the dedicated black rear cover to the back of the panel and secure it with four self-tapping screws. This firmly clamps the panel between the handle and the rear cover to complete the installation.
