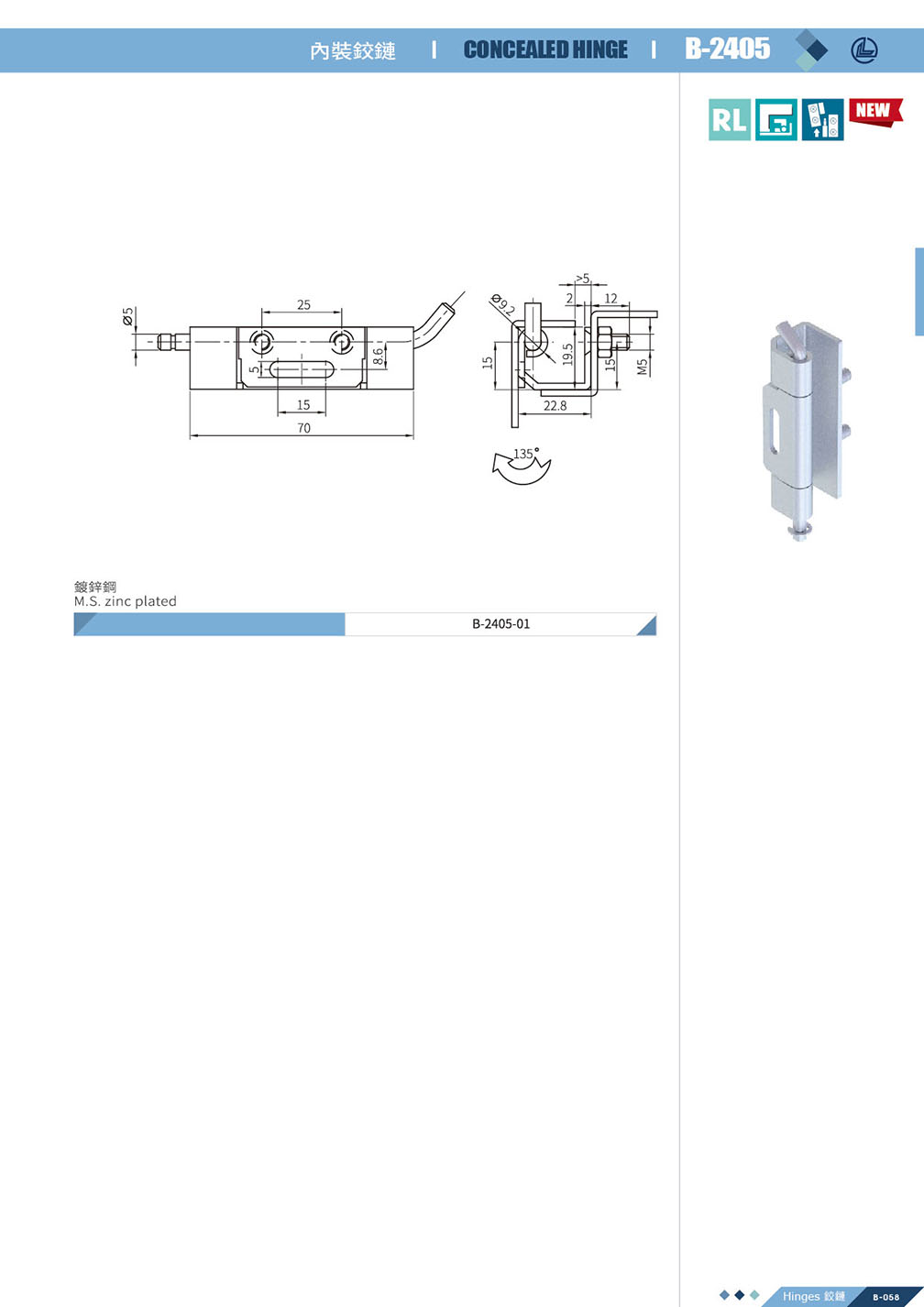

Model: B-2405
Concealed Hinge
Inquiry
Download
Download 3D Step
BACK TO LIST

Concealed Interior Hinge

A concealed hinge installed inside the enclosure or cabinet door. The hinge is not visible from the outside, achieving a clean and aesthetically pleasing appearance.

Material Options

  • Galvanized Steel

Product Advantages

  • Fully concealed design – installed inside the enclosure
  • Opening Angle: 135°
  • Quick-release design: The pin can be removed via the E-clip, allowing easy door panel removal

Key Benefits

  • Fast disassembly: No need to remove the entire hinge; simply remove the E-clip and pull out the pin to separate the door panel from the enclosure.
  • Easy maintenance: Convenient for replacing door panels or performing maintenance and servicing.
  • Wide opening angle: 135° opening allows easy access for internal operations.

Universal for left-hand and right-hand installation; simply adjust the orientation during installation.

Applications

  • Electrical control cabinets
  • Machinery equipment
  • Sheet metal machinery
  • Industrial equipment doors
  • Instrument enclosures
  • Automation equipment
