Screw-on Hinge

Product Specifications

Material: Stainless steel casting SUS316 (excellent corrosion resistance, suitable for harsh environments).
Surface Treatment: Bright polishing, black coating (customized). Available in 4 sizes to meet different equipment requirements.

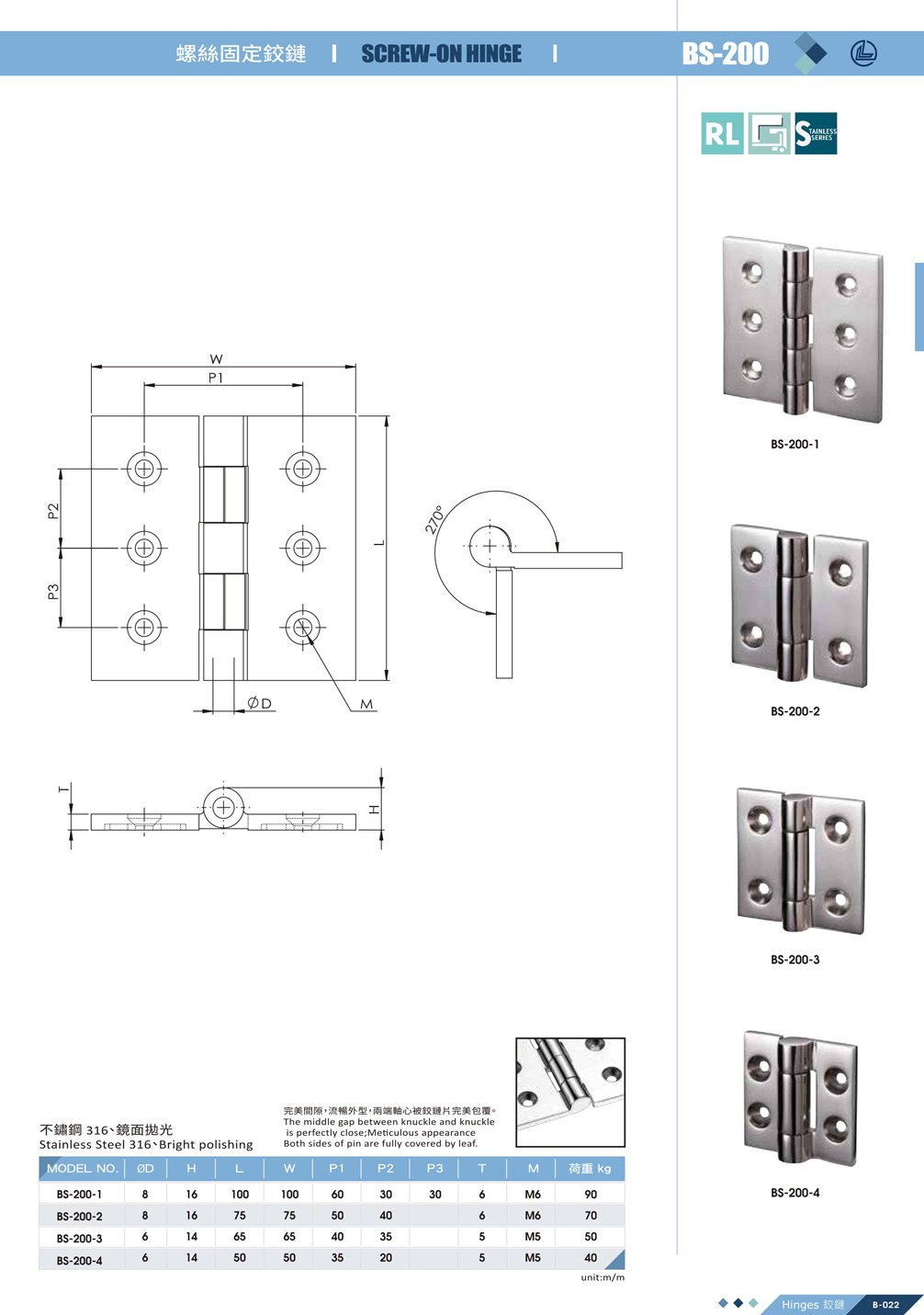

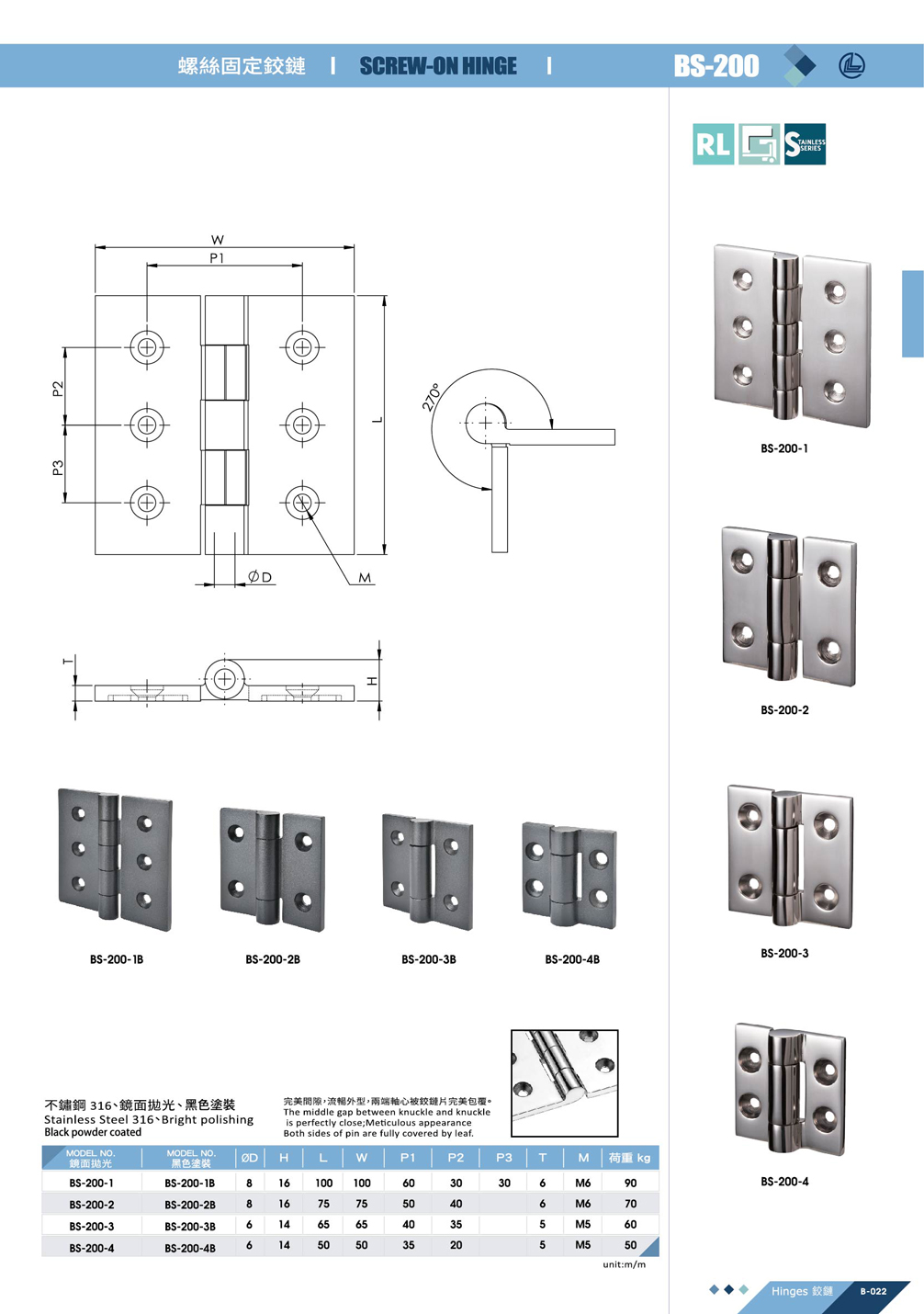

BS-200 Hinge Design Features

Ultra-tight Gap
1. High machining precision between hinge leaves, creating an almost invisible gap.
2. Reduces dust, moisture, and oil penetration, effectively extending the service life.
3. Smooth opening and closing action, minimizing wobbling and noise.
Concealed Pin Design
1. The central rotating pin is completely enclosed by the hinge leaves, leaving no metal pin head exposed.
2. Enhances the overall appearance, ideal for high-end equipment enclosures with aesthetic or craftsmanship requirements.
3. Provides excellent anti-tamper performance, preventing direct pin removal or external damage.
High Corrosion-resistant Material
1. SUS316 stainless steel casting offers outstanding resistance to seawater and high-humidity environments.
2. Bright polishing finish is both visually appealing and easy to clean.

Applications

BS-200-4 Screw-On Hinge
