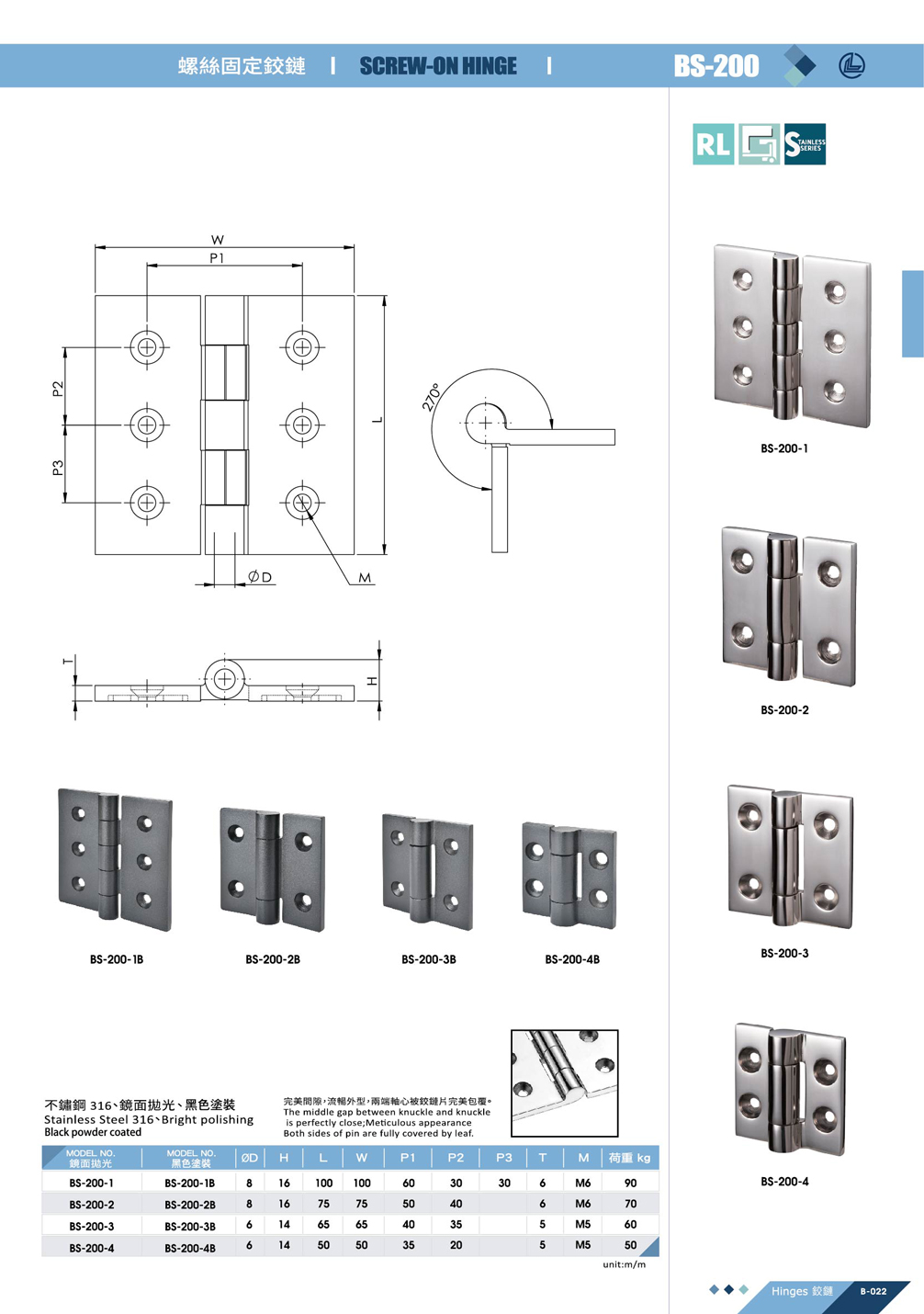

Screw-on Hinge

Product Specifications

Material: Stainless steel casting SUS316 (excellent corrosion resistance, suitable for harsh environments).
Surface Treatment: Bright polishing, black coating (customized). Available in 4 sizes to accommodate different equipment needs.

BS-200 Hinge Design Features

Ultra-tight Gap
1. High machining precision between hinge leaves, creating an almost invisible gap.
2. Minimizes the intrusion of dust, moisture, and oil, effectively extending product lifespan.
3. Smooth opening and closing motion, reducing wobbling and noise.
Concealed Pin Design
1. The central rotating pin is fully enclosed within the hinge leaves, leaving no metal pin head exposed.
2. Enhances the overall appearance, ideal for high-end enclosures requiring refined craftsmanship.
3. Provides excellent anti-tamper protection by preventing direct pulling or damage from outside.
High Corrosion-resistant Material
1. SUS316 stainless steel casting offers outstanding resistance to seawater and high-humidity environments.
2. Bright polishing finish provides an attractive appearance and is easy to clean.

Applications

BS-200-3 Screw-On Hinge
