Screw-on Hinge

Product Specifications

Material: Stainless steel casting SUS316 (excellent corrosion resistance, suitable for harsh environments).
Surface Treatment: Bright polishing, black coating (customized), available in 4 sizes to meet different equipment requirements.

BS-200 Hinge Design Features

Ultra-tight Gap
1. High machining precision between hinge leaves, resulting in almost no visible gaps.
2. Reduces intrusion of dust, moisture, and oil, effectively extending service life.
3. Smooth opening and closing motion, minimizing wobbling and noise.
Concealed Pin Design
1. The central rotating pin is fully enclosed by the hinge leaves, with no exposed pin head.
2. Enhances overall appearance, suitable for premium enclosures and applications requiring refined craftsmanship.
3. Provides excellent anti-tamper performance, preventing direct pulling or damage from the outside.
High Corrosion-resistant Material
1. SUS316 stainless steel casting offers outstanding resistance to seawater and high-humidity environments.
2. Bright polishing finish provides both aesthetic appeal and easy cleaning.

Applications

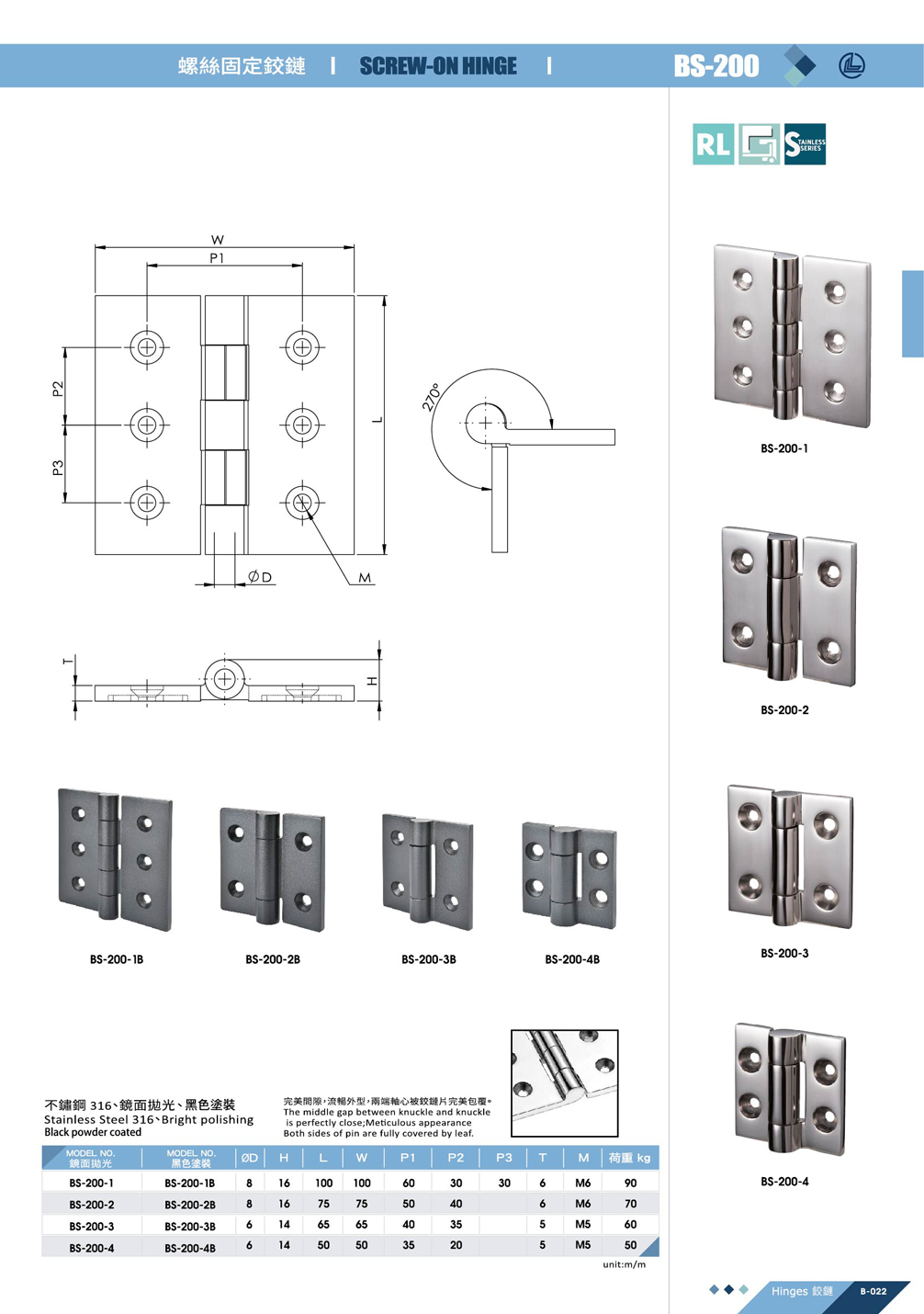

BS-200-1 Screw-On Hinge
