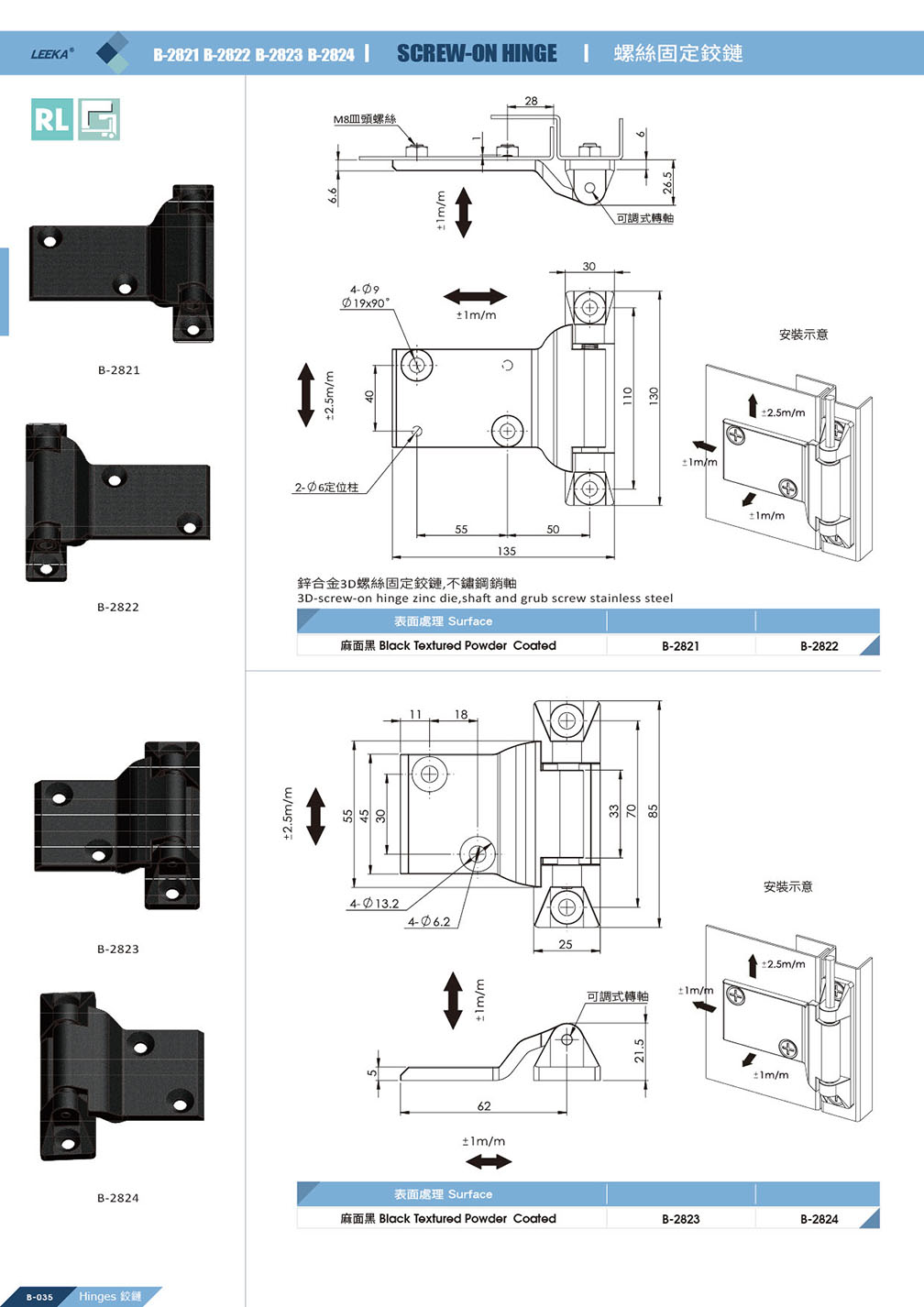

B-2823-R Screw-On Hinge

Product Specifications

• Body: Zinc alloy
• Pivot: Stainless steel 304
• Surface: Black coating

Adjustment Features

This hinge's key feature is precise 3D adjustment using a hex wrench:

• Vertical (Up/Down): ±2.5 mm/m
• Horizontal (Left/Right): ±1 mm/m
• Depth (Front/Back): ±1 mm/m

Adjustment Steps

• Use a hex wrench to turn the adjustment screws inside the pivot to fine-tune the door position.
• After adjustment, tighten the side hex hole to ensure the hinge is securely fixed.
• Supports both left- and right-opening doors (available in left-side and right-side models).

Applications

• Electrical control cabinets / distribution boxes
• Automation equipment
• Server or equipment racks
• Outdoor distribution boxes
• Control boxes
