Model: B-2408-01
Concealed Hinge
Inquiry
Download
Download 3D Step
BACK TO LIST

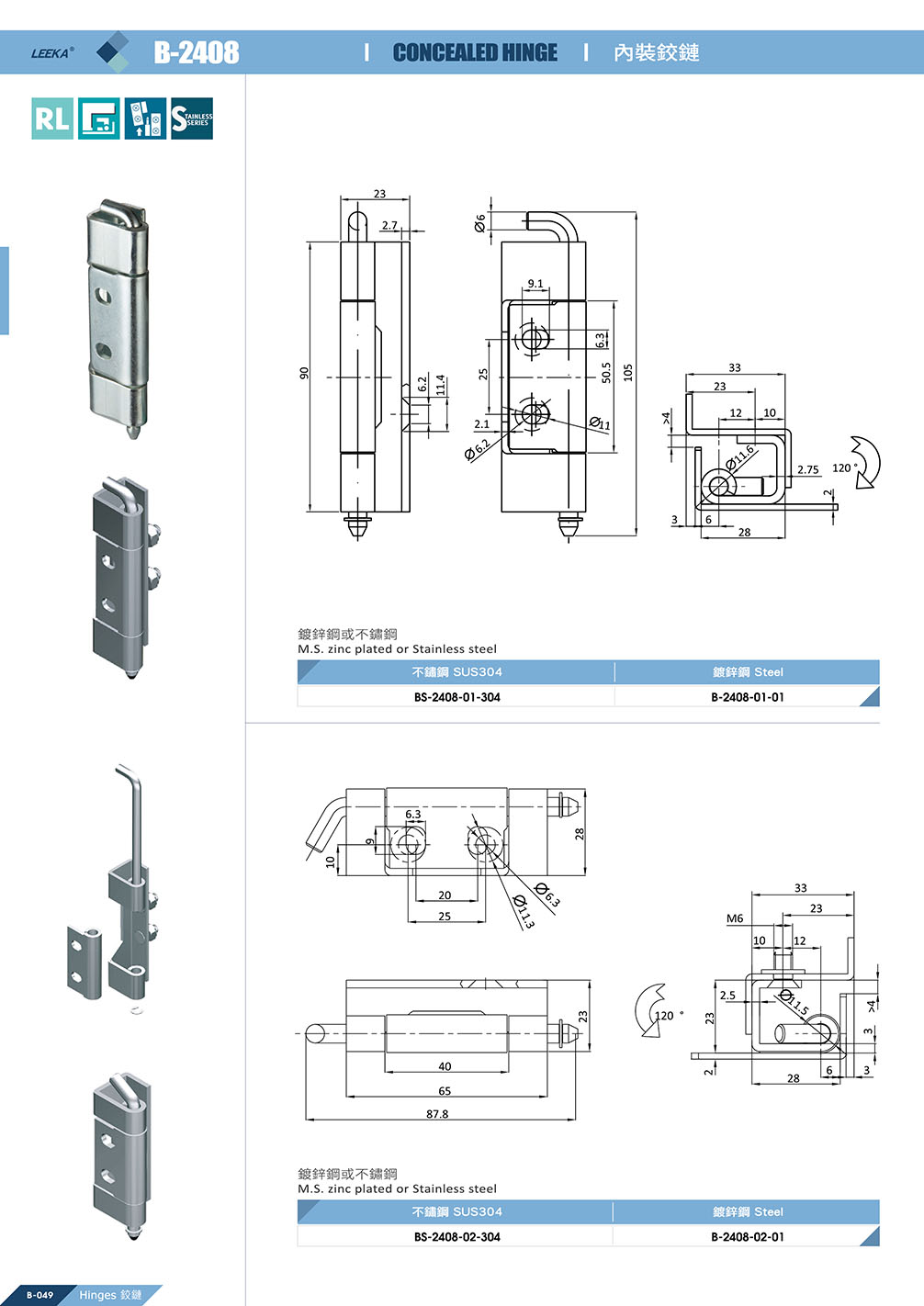

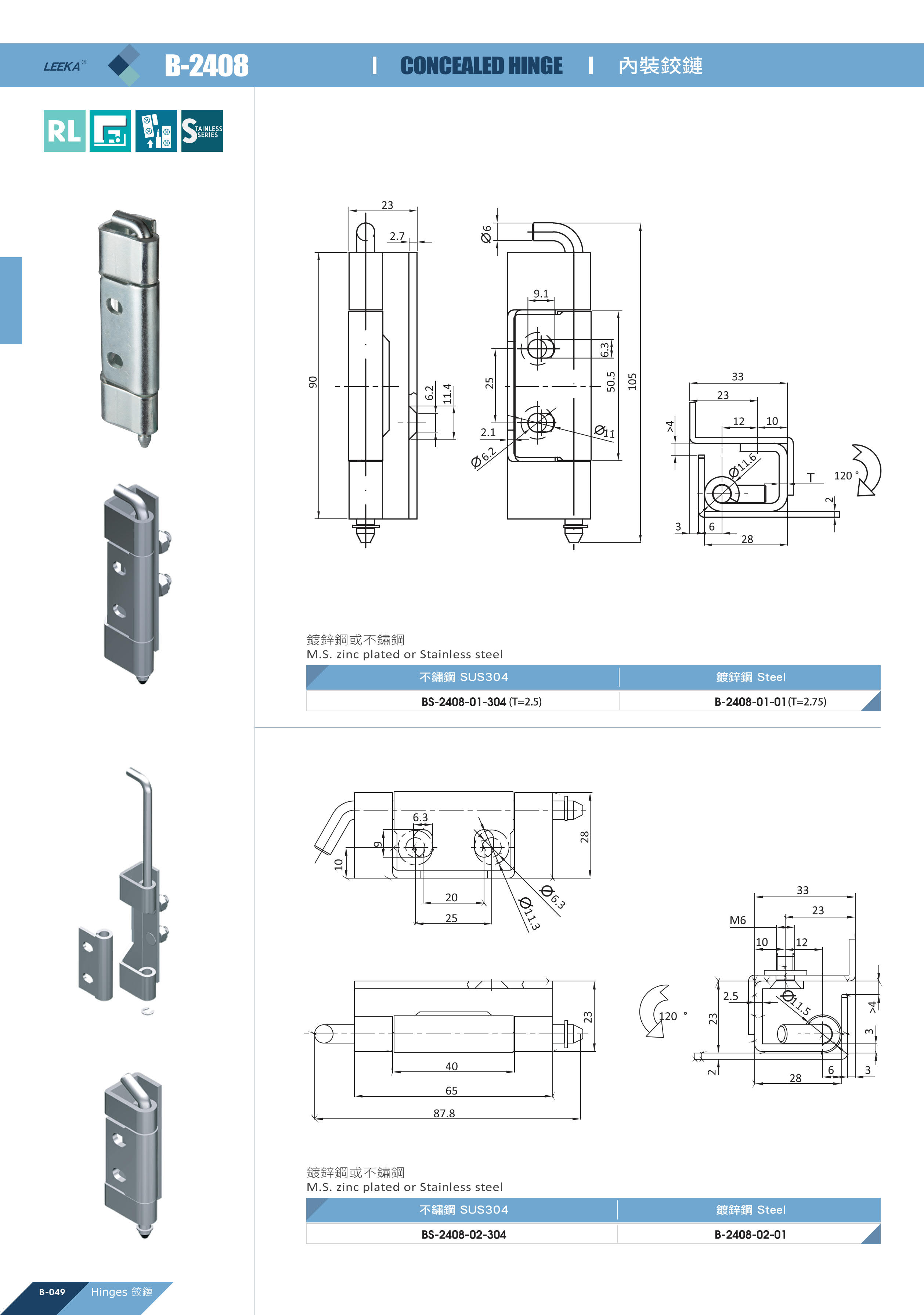

Concealed Internal Hinge

A concealed hinge installed inside the enclosure or cabinet door. The hinge is not visible from the outside, achieving a clean and aesthetically pleasing appearance.

Product Advantages

  • Fully concealed design – installed inside the enclosure
  • Opening angle: 120°
  • Quick-release design: the pin can be removed via an E-clip, allowing easy door panel removal

Material Options

  • Galvanized steel or stainless steel SUS304

Product Models

  • BS-2408-01-304 (Stainless steel SUS304, thickness 2.5 mm)
  • B-2408-01-01 (Galvanized steel, thickness 2.75 mm)

Key Benefits

  • Quick disassembly: No need to remove the entire hinge—simply remove the E-clip and pull out the pin to separate the door panel from the enclosure
  • Easy maintenance: Convenient for door replacement or maintenance service
  • Wide opening angle: 120° opening allows easy access for internal operations

Universal left/right mounting design; adjust orientation during installation as needed.

Applications

  • Industrial control enclosures
  • Server cabinets
  • Machinery sheet metal
  • Power distribution boxes
  • Electrical control panels
  • Automation equipment
