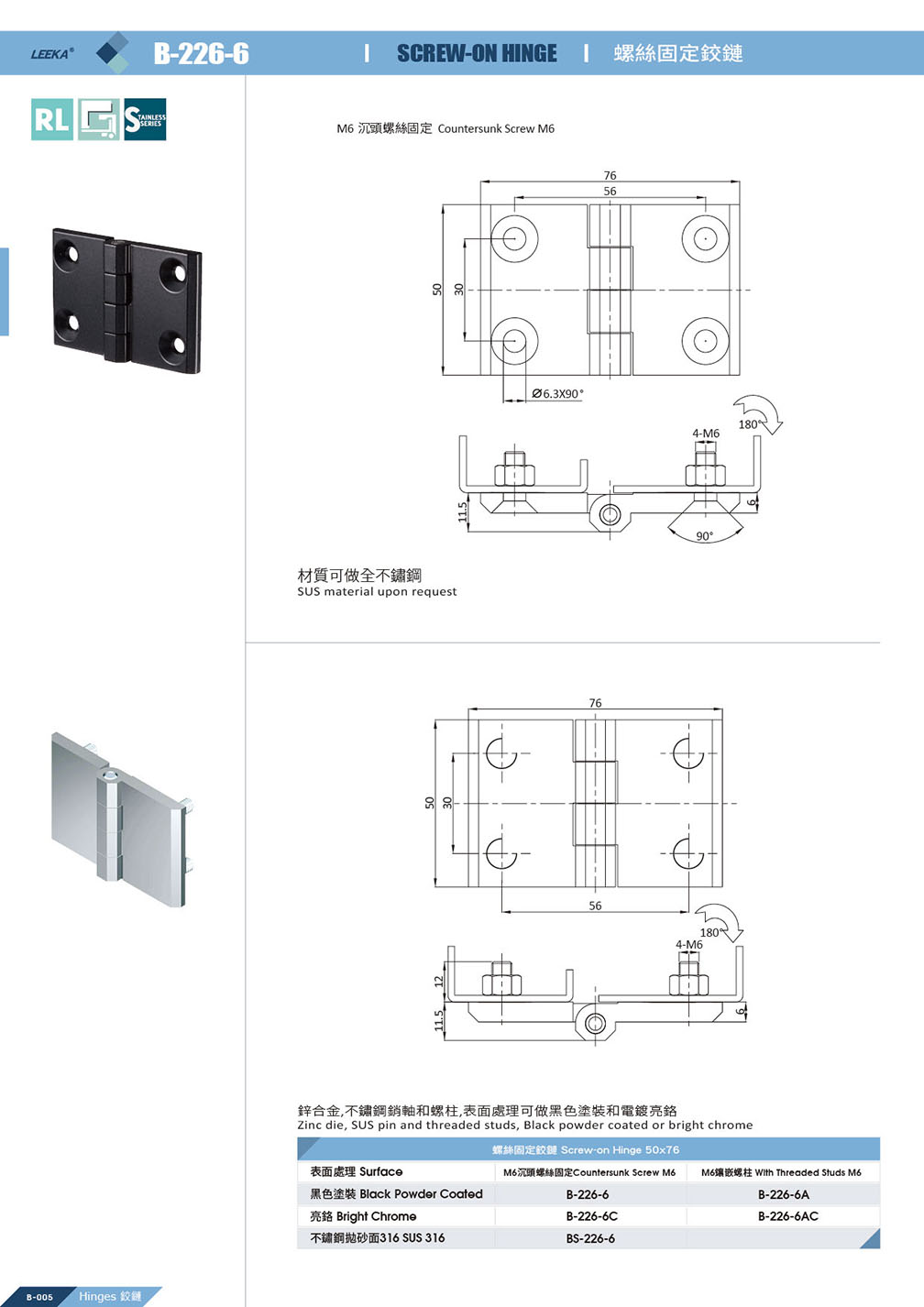

B-226-6C Screw-On Hinge

Material Options

• Body Material: Zinc alloy
• Surface Treatment: Black coating or bright chrome plating
• Body Material: Stainless steel 316 (SUS 316)
• Surface Treatment: Sandblasted or brushed finish

Installation Methods

• 1. Screw Hole Type: Uses M6 countersunk screws from the front side; countersunk design suitable for flat head/countersunk screws.
• 2. Stud Type: Fixed with nuts from the back; front surface remains screw-free for a cleaner and more aesthetic appearance.

Applications

• New energy equipment
• Cabinet doors
• Power control boxes
• Distribution cabinets
• Industrial equipment
• Automation machinery
• Test instrument enclosures
• Food processing equipment
• Chemical plant equipment
