External Hinge (Screw-on Hinge)

Product Specifications

Material Options: Body – Zinc alloy; Pin – Stainless steel 304; M8 stud – Stainless steel 304
Surface Treatment: Black coating or sandblasted chrome plating

Structural Features

Asymmetric Left-Right Hinge Design:
1. The asymmetric hinge features one wide side and one narrow side, allowing flexible installation in various space constraints.
2. Strength and Support:
The larger leaf provides greater contact area to distribute door weight, while the smaller leaf allows mounting on narrow structures with the larger leaf bearing the main torque.
Stud Type:
Fixed from the back with a nut, leaving no visible screws on the front → for a cleaner and more aesthetic appearance.

Applications

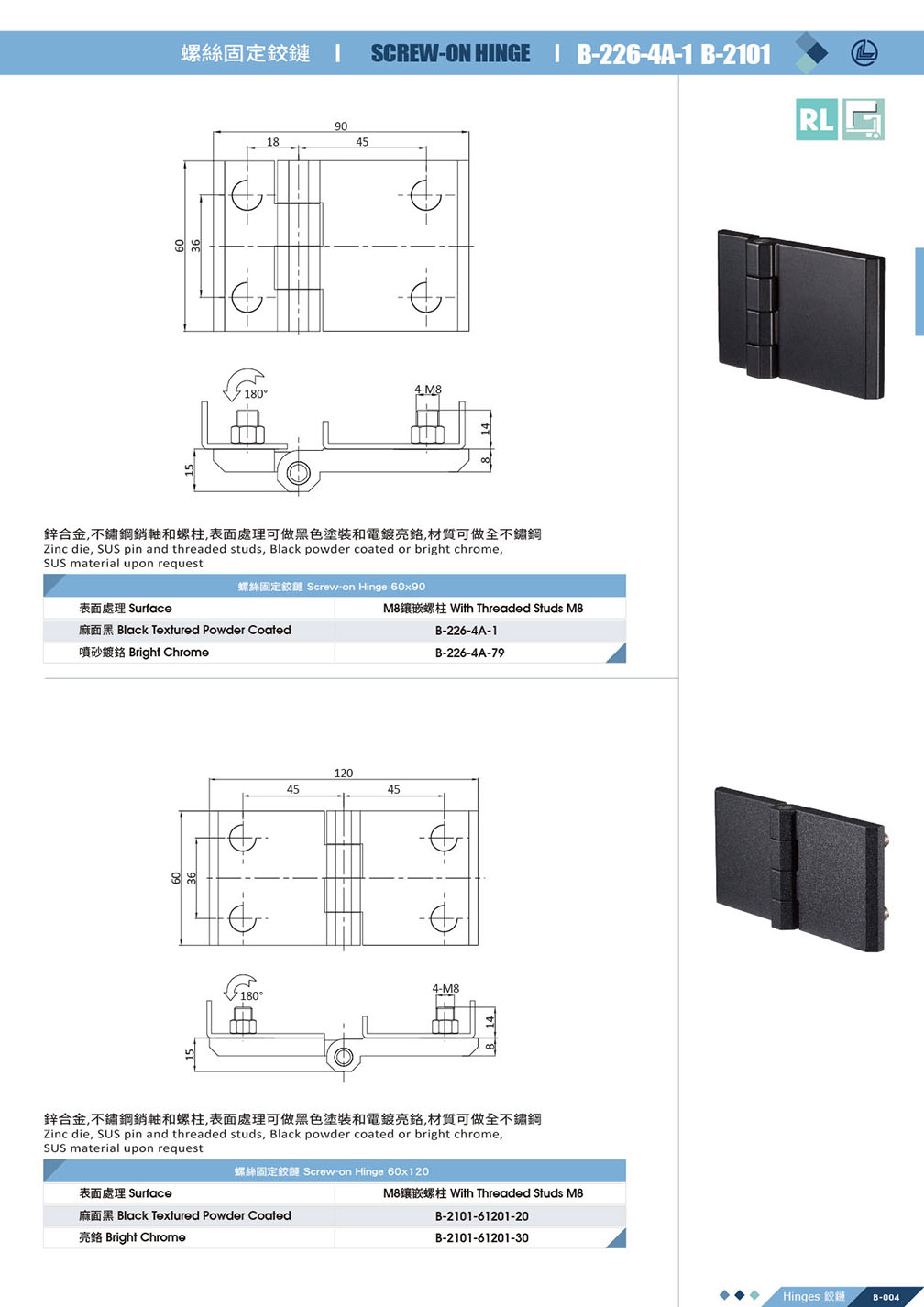

B-226-4A-1 Screw-on Hinge
