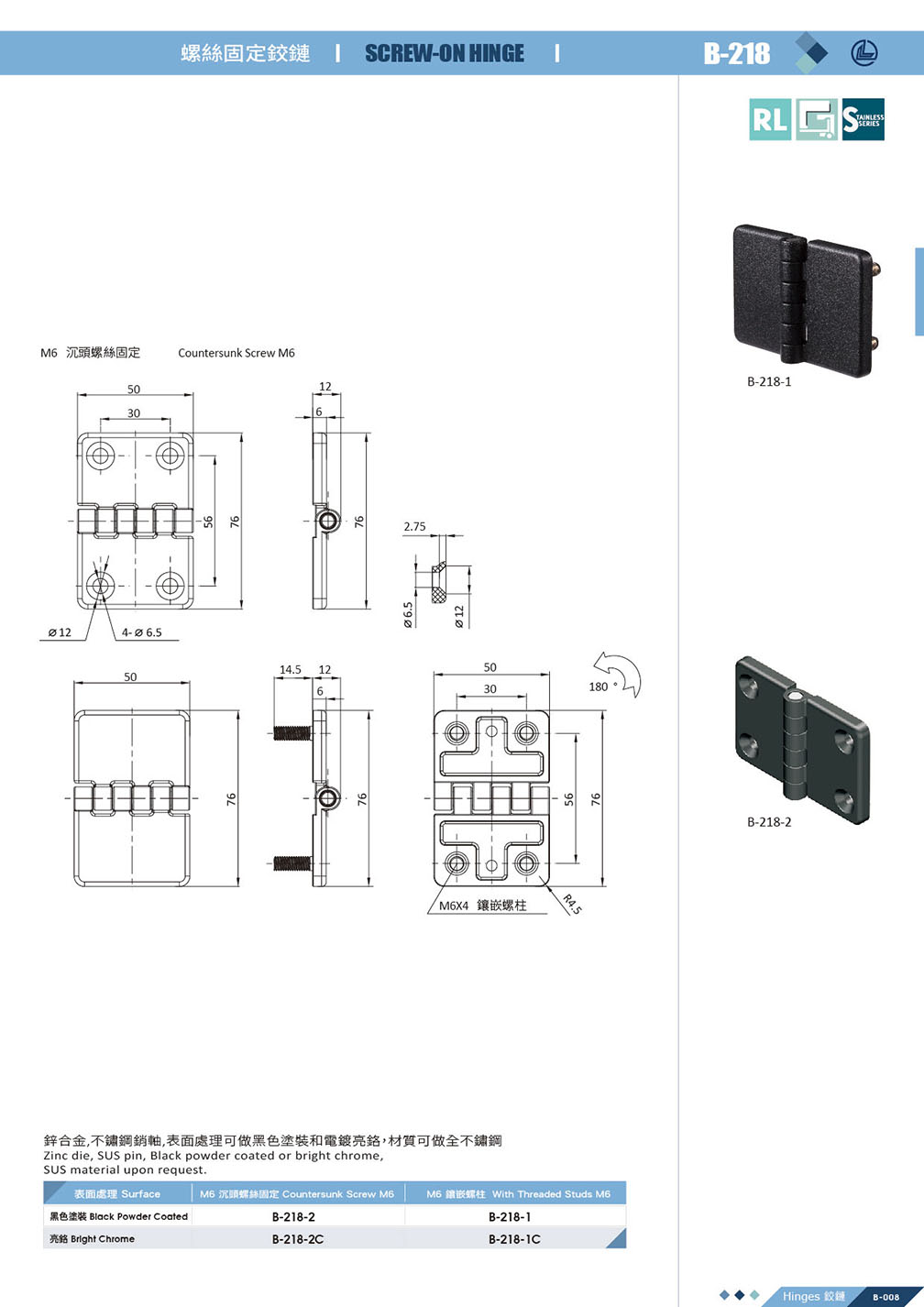

B-218-2 Screw-On Hinge

Material and Surface Treatment

• Material: Zinc alloy body, stainless steel pin and stud
• Surface Treatment: Black coating or bright chrome plating

Installation Method

• With Screw Holes Type: Screws are mounted from the front with countersunk holes, suitable for flat head / countersunk screws.
• Model: B-218-2 (black coating), B-218-2C (bright chrome)
• With Stud Type: Fixed from the back with nuts; no visible screws on the front for a cleaner and more aesthetic appearance.
• Model: B-218-1 (black coating), B-218-1C (bright chrome)

Applications

• Industrial control cabinets
• Equipment racks / control boxes
• Instrument enclosures
• Communication / network cabinets
• Machinery equipment
• Railway vehicle equipment boxes
