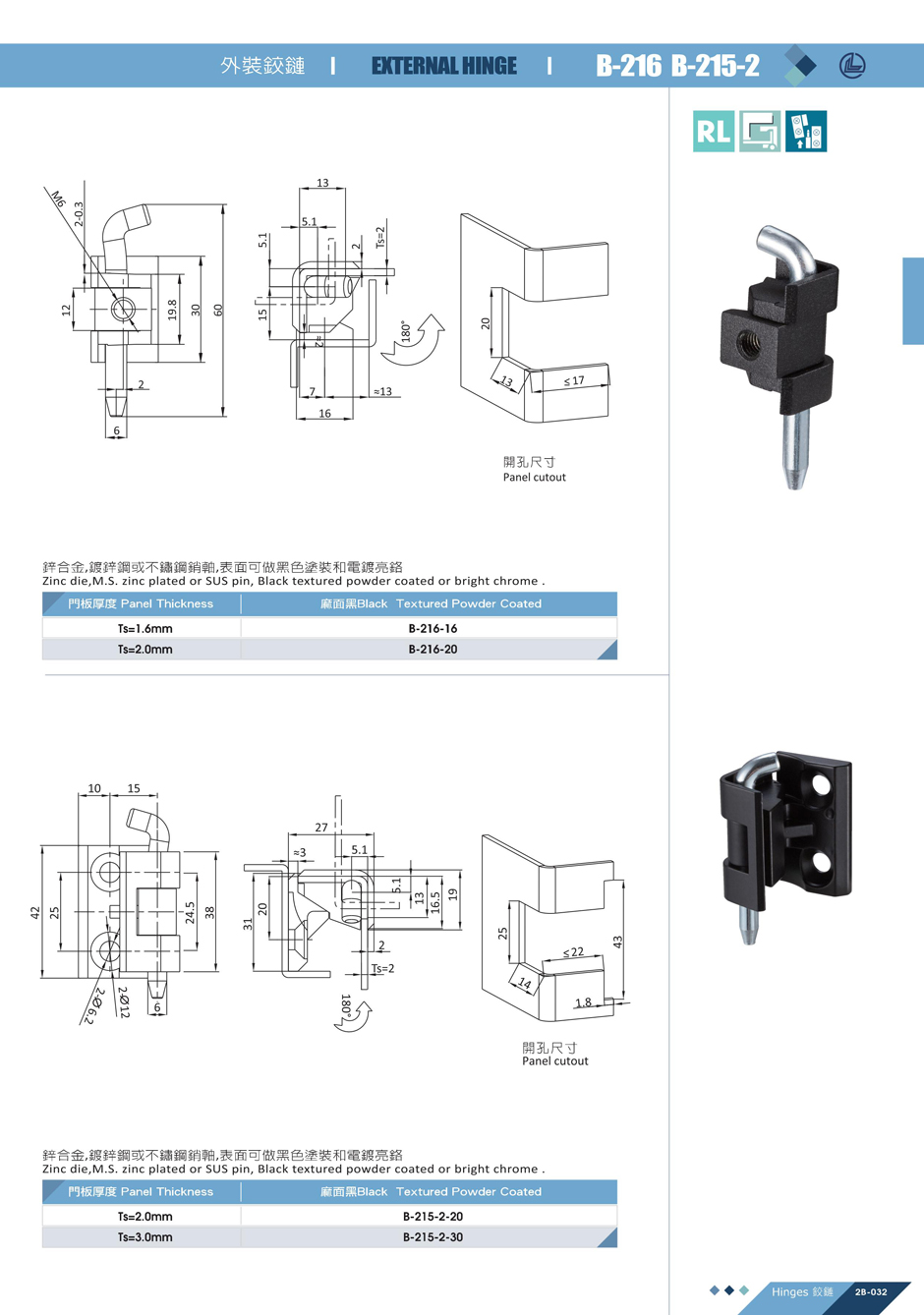

B-215-2 External Hinge

Product Specifications

• Body Material: Zinc alloy
• Pin Material: Galvanized steel or SUS304 stainless steel
• Surface Finish (optional): Black coating / Bright chrome
• Dimensions:
  Suitable door thickness (TS):
  TS = 1.5 mm, Model B-215-2-15
  TS = 2.0 mm, Model B-215-2-20
  TS = 3.0 mm, Model B-215-2-30

Functional Features

• Designed for recessed installation of doors or enclosures
• Removable pin allows easy installation or removal of the door
• Available versions for different door thicknesses

Applications

• Electrical equipment
• Cabinets / Distribution boxes
• Telecommunication equipment enclosures
• Industrial control boxes
• Rail vehicles
• Subway equipment enclosure doors
• Highway toll equipment control boxes
• Surveillance system electrical control boxes
