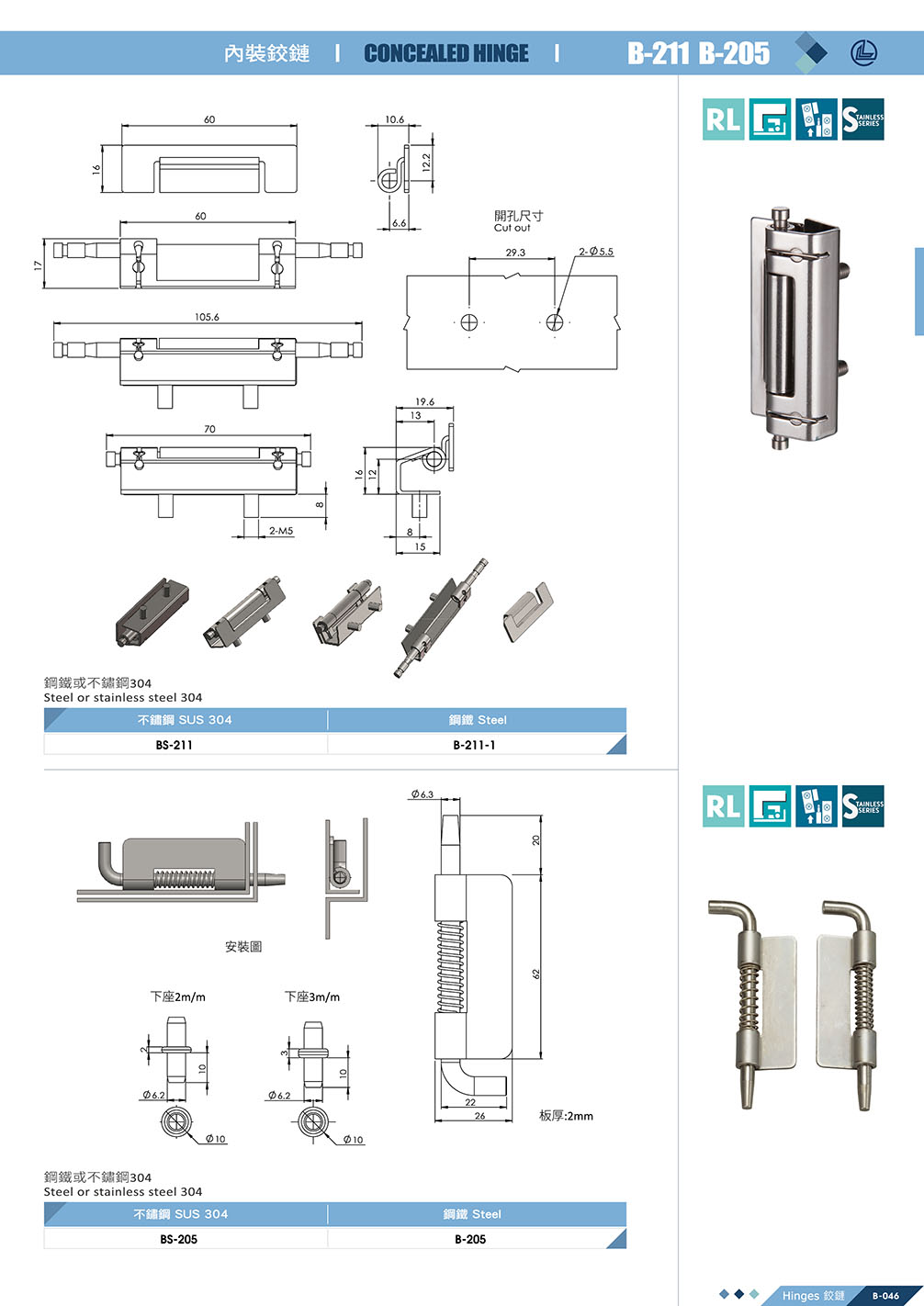

Model: B-211
Concealed Hinge
Inquiry
Download
Download 3D Step
BACK TO LIST

Concealed Internal Hinge

This concealed hinge is installed inside the enclosure or cabinet door, keeping the hinge completely hidden from the exterior for a clean and aesthetically pleasing appearance.

Product Features

  • Body Material: Available in steel or SUS 304 stainless steel
  • Body Fixing: Secured to the enclosure from the rear with nuts for firm installation without external exposure
  • Mounting Plate Welding: Fully welded to the door panel to ensure long-term stability without loosening

Advantages

  • Quick-Release Mechanism: Simply push out the upper and lower pins to remove the door
  • Easy Maintenance: Fast and convenient disassembly and reinstallation, saving time and effort during maintenance
  • Clean Appearance: Hinges are completely hidden from the exterior of the enclosure

Universal design for left- and right-hand installation; adjust orientation as needed during installation.

Applications

  • Electrical Control Cabinets
  • Machinery Equipment
  • Sheet Metal Fabrication
  • Industrial Equipment Doors
  • Instrument Enclosures
  • Automation Equipment
