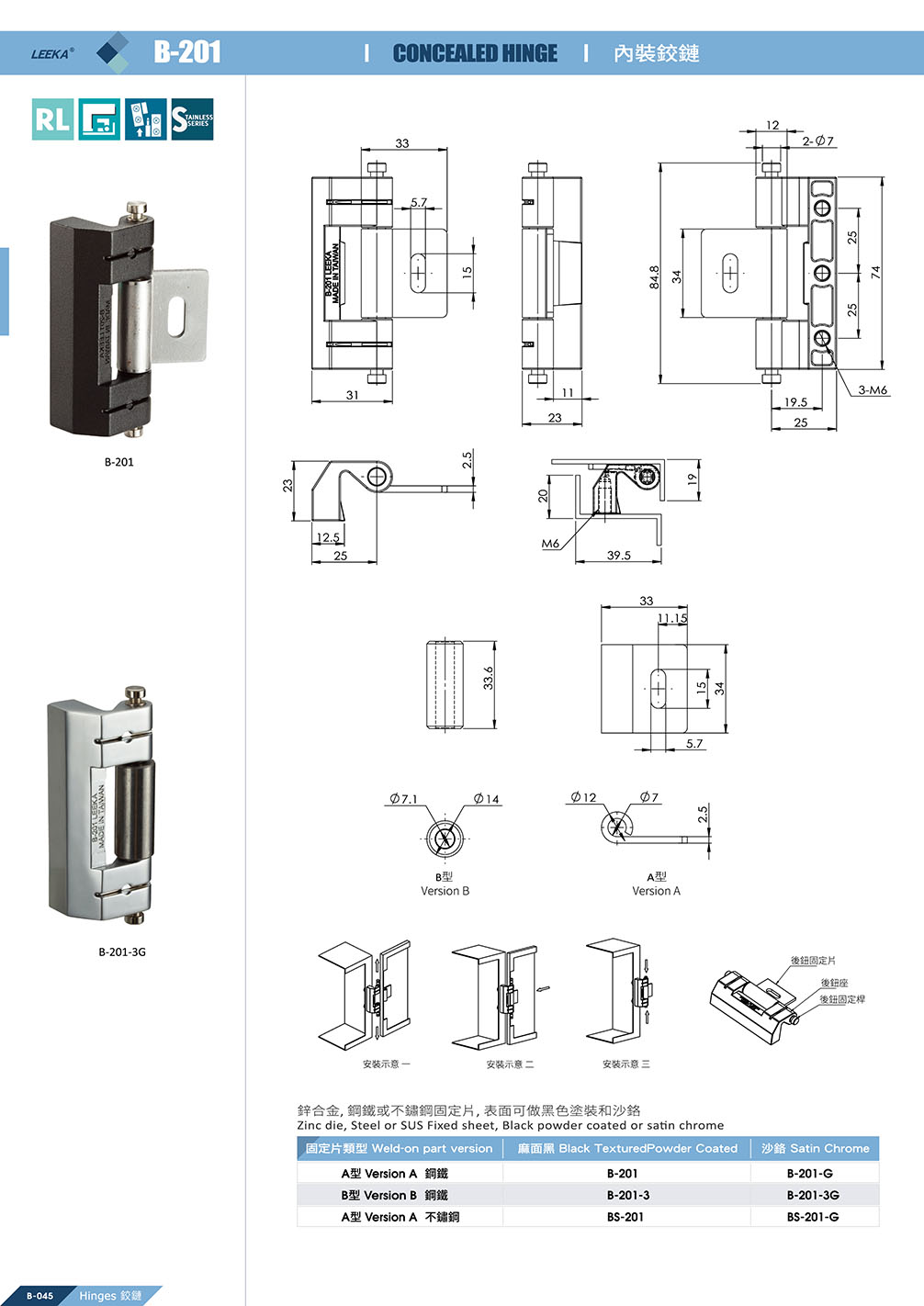

BACK TO LISTConcealed Internal Hinge
This concealed hinge is installed inside the enclosure or cabinet door. The hinge is not visible from the outside, providing a clean, hidden, and aesthetically pleasing appearance.
Product Features
- Main Body Material: Zinc Alloy
- Surface Finish: Black coating or satin chrome finish
- Mounting Plate Material: Optional iron or stainless steel (SUS)
Installation Method
- Main Body Fixing: Secured from the rear using screws
- Mounting Plate Welding: Fully welded onto the door panel to ensure stability
Advantages
- Quick-Release Mechanism: The door can be removed by pushing out the upper and lower pins
- Easy Maintenance: Fast and convenient removal and reinstallation, saving time and effort
- Clean Appearance: The hinge is completely hidden from the exterior of the enclosure
Universal for left- and right-hand installation; simply adjust the orientation during installation.
Applications
- Electrical Control Enclosures
- Machinery Equipment
- Sheet Metal Fabrication
- Industrial Equipment Doors
- Instrument Enclosures
- Automation Equipment
