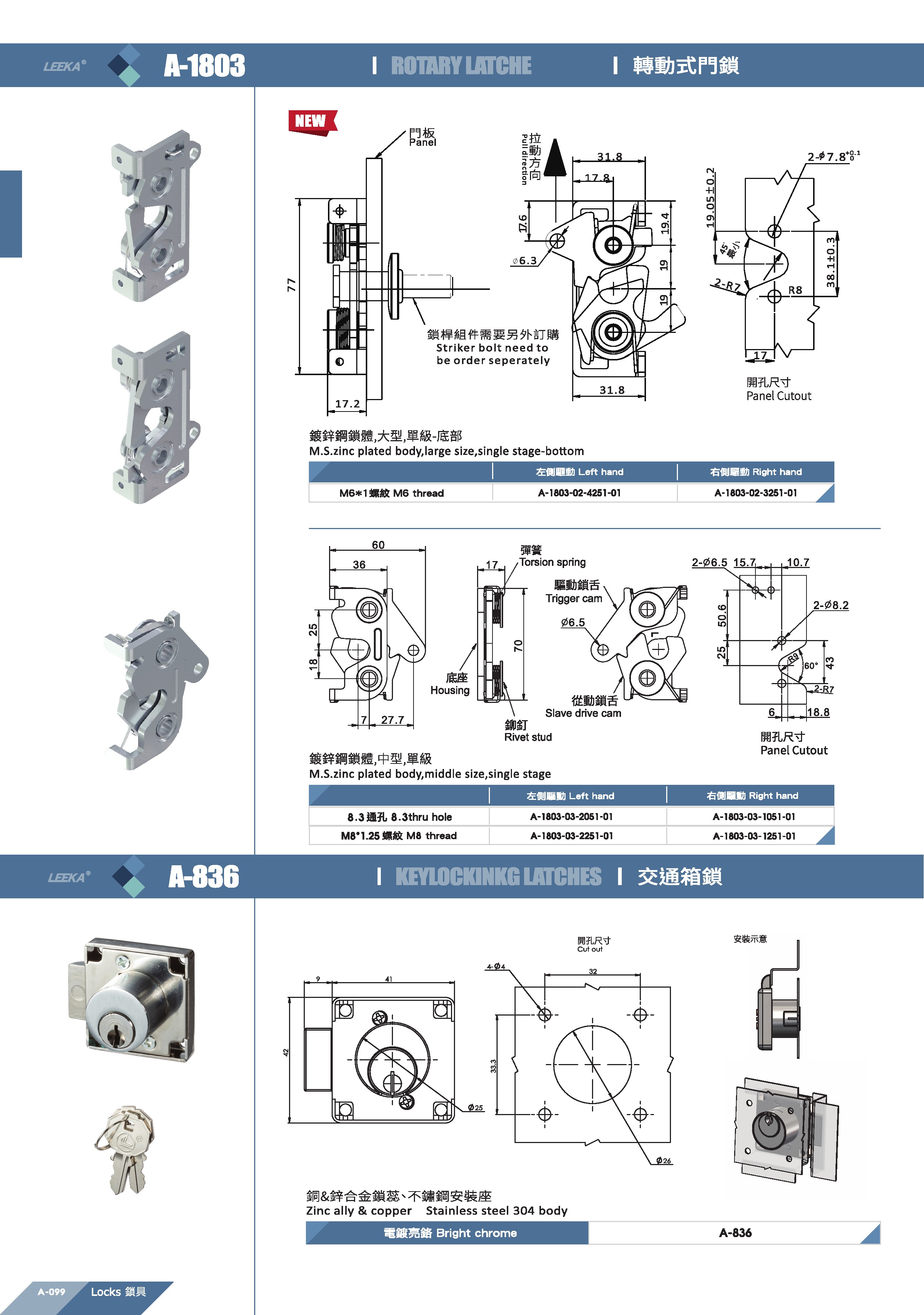

A-1803 Rotary Latches

Product Features

• Installation Position: The A-1803 Rotary Latch is installed inside the equipment (hidden position).
• Connection Method: The A-1803 Rotary Latch is connected to an external latch (such as the AC-1901 Push-to-Close Latch) through a cable.
• Operation Method: When the external latch (e.g., AC-1901 Push-to-Close Latch) is operated, it drives the A-1803 Rotary Latch’s hook to rotate. Once the hook rotates into position, unlocking is achieved.

Rotary Latch - Working Process

• When Closing: Push or pull the door panel → drives the A-1803 Rotary Latch hook to automatically rotate and engage → locking completed.
• When Opening: Operate the external latch (e.g., AC-1901 Push-to-Close Latch) → pull the latch → drives the A-1803 Rotary Latch hook to rotate → once the hook rotates into position, unlocking is achieved → the door opens.
